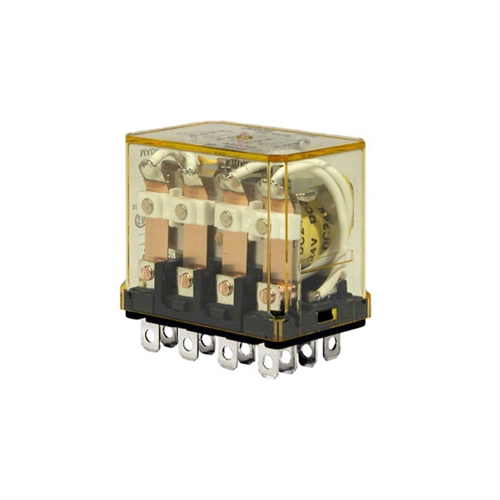

RH4B-UDC125V - IDEC GP Relay

RH4B-UDC125V - IDEC
RH4B-UDC125V

Price: $23.61
Manufacturer SKU: RH4B-UDC125V


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: RH4B-UDC125V
Qty:

Description Technical Specs

RH4B-UDC125V - IDEC GP Relay


RH Series
Featuring the same contact ratings as the larger RR series, the RH series uses silver cadmium oxide contacts to help reduce voltage arcing. Available in 1 to 4 poles, with either .187" blade plug-in or PCB terminals, the RH series is known for going the distance. Options include manual check buttons, LED indicators, and top flange covers for direct surface mounting. All models carry worldwide approvals including UL, CSA, TUV and CE. Using a standard terminal arrangement, the RH series will plug into many competitors' sockets. In fact, since we private label sockets for so many companies, there is a good chance that the socket you are using was designed specifically for RH series relays.

Key Features
  • Compact midget size saves space
  • SPDT, DPDT, 3PDT, or 4PDT AgCdO contacts
  • High switching capacity (10A)
  • Choice of blade or PCB type terminals
  • Options include indicator light and check button
  • Mounting options include top mounting, DIN socket, or panel mount socket

pdfDownload the RH Relay Series in *.pdf format
pdfDownload the Quick Selection Guide catalog in *.pdf format
pdfDownload the Relay & Socket Family sales brochure in *.pdf format
pdfDownload the Relay Spring Installation guide in *.pdf format
