NC1V-3132F-10AM - IDEC Circuit Protector 3 Pole 10A Series Trip Slow Time Delay Curve 2 Auxiliary Contact 1 Alarm Contact Inertia Delay

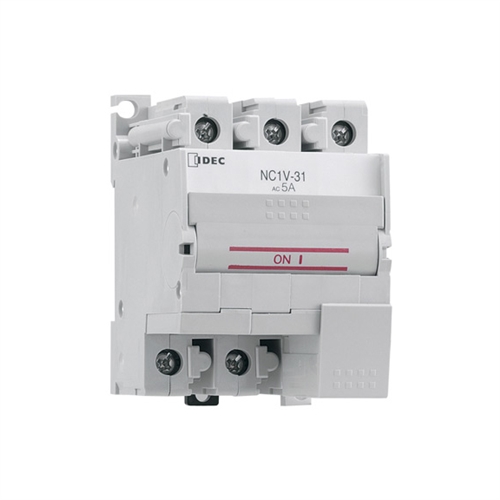

NC1V-3132F-10AM - IDEC
NC1V-3132F-10AM

Price: $54.89
Manufacturer SKU: NC1V-3132F-10AM


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: NC1V-3132F-10AM
Qty:

Description Technical Specs

NC1V-3132F-10AM - IDEC Circuit Protector 3 Pole 10A Series Trip Slow Time Delay Curve 2 Auxiliary Contact 1 Alarm Contact Inertia Delay
Circuit Protector 3 Pole 10A Series Trip Slow Time Delay Curve 2 Auxiliary Contact 1 Alarm Contact Inertia Delay

The NC1V Series Family
DIN rail mount with finger safe spring up screw terminals and trip current ratings up to 30A. Available in 1, 2 or 3 poles. Optional direct panel mount kit and Relay Voltage trip units available.

Key Features
  • Slim, space-saving housing
  • Rated short-circuit capacity: 2500A
  • Trip current from 0.1A and up to 30A
  • Optional auxiliary / alarm contacts or inertia delay
  • 5 Tripping Delay Curves available
  • Spring-up, finger-safe (IP20) terminals reduce wiring time
  • Ring terminals can be installed. Captive terminal screws construction
  • Auxiliary/alarm contact terminals equipped with terminal covers
  • Retractable actuator provides flush / clean appearance and makes status easily visible
  • Safe trip free mechanism ensures circuit to remain open until trip condition is cleared and operator manually resets to off before switching to on
pdfDownload the NC1V Series product brochure in *.pdf format
