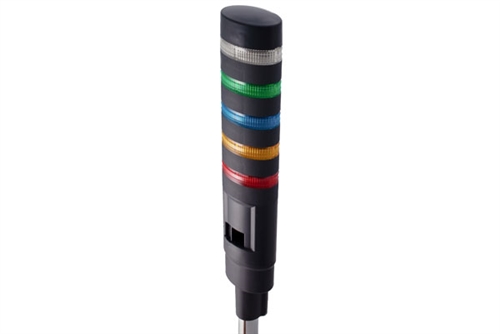

LD6A SignaLights utilize LED technology to provide a bright solution for supervising workstations or indicating the status of a process. These light towers have a unique ellipse lens shape and modern design, which uses a contrast of illuminated and non-illuminated areas to provide sharper illumination and increased visibility of status.

Optional clear lenses provide a sharper contrast to help avoid confusion about whether a signal is on or off. Lenses are also available in red, yellow, blue, green and pure white, which work with 24V DC base units.

All LD6A light towers come prewired and preconfigured, eliminating time-consuming wiring. All colored tiers come with color-coded wires, ready-to-operate right out of the box without additional assembly and wiring. All units also come with mounting screws and washers.

• Steady and Flashing Units.
• Two Alarm Styles (Volume: 70dB to 90dB)
  • Intermittent short sound
  • Intermittent long sound
• Five Mounting styles
  • Wall Mount
  • Frame Mount
  • Frame Mount

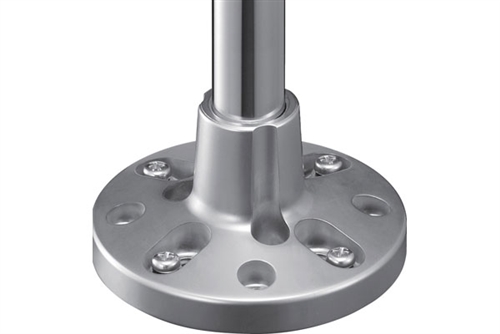

  • Pole mount with base
  • Pole mount with L-Shaped bracket
• IP 65 Degree of protection (Steady Type)
• Clear Lens type available for clearer ON/OFF state distinction
• UL/c-UL Recognized and CE Marke

Click to view the LD6A Series Data Sheet in *.pdf format

Click to view the IDEC LD6A Series Sales Brochure in *.pdf format
