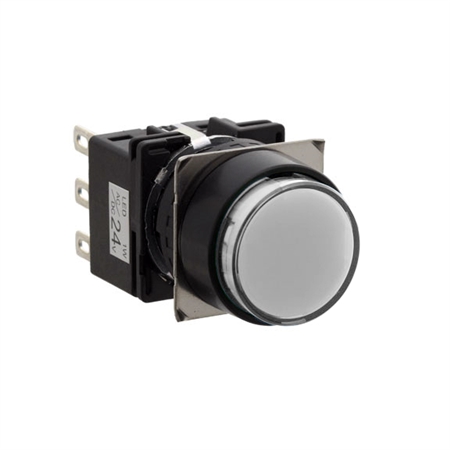

LB1L-A1T23VPW - IDEC LB Series 16mm Illuminated Pushbutton DPDT White
The LB Series Family
With a choice of metallic or black plastic bezels,
and flush or standard mounting, our newest 16mm switches add style and
safety to any application. All LB switches are UL recognized, TUV
approved, CSA certified and CE marked, as well as provide an IP65 degree
of protection. Available in illuminated pushbuttons, pushbuttons, pilot
lights, selector switches, key selector switches, illuminated
selectors, lever selectors, dome pilot lights, lever switches and buzzer
models, these switches are perfect for use with instrumentation,
communication equipment, computer peripheral, telecom, medical
equipment, food and beverage processing equipment, semi-conductor
equipment, non-industrial applications (train cab, parking machines,
audio/visual equipment), panels and more!
Flush Mount
Projecting
only 2mm in front of the panel, flush mount switches offer a
streamlined package, perfect for applications requiring a hygienic
surface. A smooth design cuts down on surface area, preventing dust and
other particles from accumulating and making regular cleaning and
maintenance a breeze.
Standard Mount
Safe and
space-saving, the contact block only protrudes 27.9m behind the panel,
compared with 45mm for most conventional 16mm switches. Plus a built-in
locking function ensures that the contacts are secure when mounted.
All LB switches are UL recognized, TUV approved, CSA certified and CE marked, as well as provide an IP65 degree of protection.
Key Features
- Sleek flush mount design
- Standard bezel with 16mm hole size also available
- Bright LED illumination
- Flush Mount: Just 34.9mm depth behind the panel
- Standard Mount: 27.9mm depth behind the panel
- 3PDT contact block available
- 5A contact ratings
- IP65 degree of protection
- Metallic or black plastic bezels
- Illuminated
pushbuttons, pushbuttons, pilot lights, selector switches, key selector
switches, illuminated selectors, lever selectors, dome pilot lights,
lever switches and buzzer models.
- Special wave keys available
 Download the Switching & Controls Family Catalog in *.pdf format
Download the Quick Selection Guide in *.pdf format
Download the LB Series brochure in *.pdf format
Download the LB Series catalog in *.pdf format
| Mounting Hole Size |
16mm |
| Product Type |
Illuminated Pushbuttons |
| Operation Type |
Maintained |
| Color |
White |
| Normally Open Contacts |
2 |
| Normally Closed Contacts |
2 |
| Illumination Voltage |
12V |
| Lamp Type |
LED |
|
|
|
 |
|
 |
|
