HA1F-3C68-Y - IDEC L6 Oversized Illuminated Selector Round 3 Position Maintained DPDT LED 120V Solder

HA1F-3C68-Y - IDEC
HA1F-3C68-Y

Price: $35.63
Manufacturer SKU: HA1F-3C68-Y


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: HA1F-3C68-Y
Qty:

Description

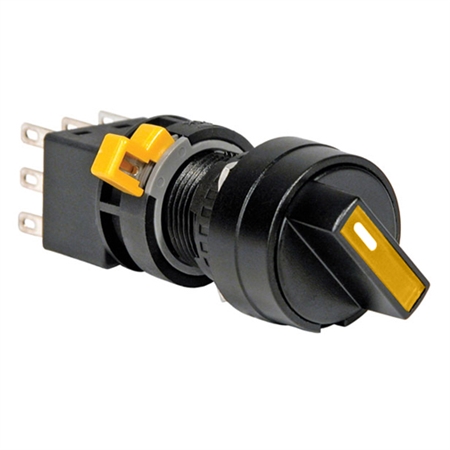

HA1F-3C68-Y - IDEC L6 Oversized Illuminated Selector Round 3 Position Maintained DPDT LED 120V Solder
Selector Switch illuminated Φ16mm 3 positions Maintained Yellow Knob 2NO-2NC contact Full Voltage 120V AC LED Solder Tab / Quick Connect Terminal

The L6 Series (Oversize Heads) Family
The L6 Oversize Operator Series of pushbuttons and pilot devices are ideal for gloved personnel and provide an alternative to 22mm pushbuttons when 16mm panel cutouts are required. Oversize button heads for round, square, mushroom, selector and key switches.

Available with termination as 0.110" solder-tab / quick-connect or with PCB terminals. Locking lever removable contacts facilitate wiring harnesses or PCB applications to reduce wiring time.

Snap action contacts are available in either SPDT or DPDT configuration, and illuminated units are available with either LED or incandescent lamps that use an industry standard T1-3/4 midget flange base lamp. Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, a piezo buzzer, pushbutton selector, and several positive action IEC Compliant Emergency Stop switches.

Key Features
  • 5/8" (16mm) mounting holes
  • Locking lever removable contact blocks
  • Solder terminal or PCB terminal options
  • Available assembled or as sub-components
  • Worldwide approvals
  • Incandescent or LED illumination
  • Snap action contacts5/8" (16mm) mounting holes
  • Locking lever removable contact blocks
  • Solder terminal or PCB terminal options
  • Available assembled or as sub-components
  • Worldwide approvals
  • Incandescent or LED illumination
  • Snap action contacts
pdfDownload the Switching & Controls Family Catalog in *.pdf format
pdfDownload the Quick Selection Guide in *.pdf format
pdfDownload the L6 Series catalog in *.pdf format
