HA1F-33C28V-R - IDEC L6 Oversized Illuminated Selector Round 3 Position Spring-Both DPDT LED 120V PCB

HA1F-33C28V-R - IDEC
HA1F-33C28V-R

Price: $35.63
Manufacturer SKU: HA1F-33C28V-R


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: HA1F-33C28V-R
Qty:

Description

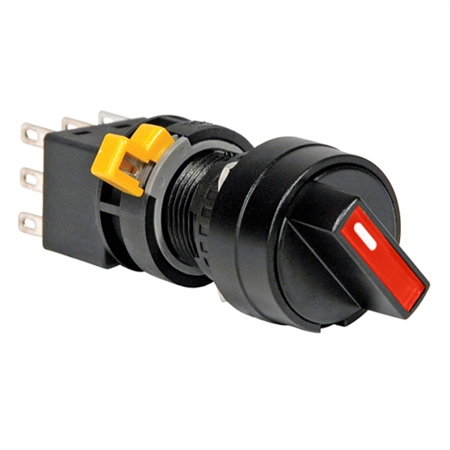

HA1F-33C28V-R - IDEC L6 Oversized Illuminated Selector Round 3 Position Spring-Both DPDT LED 120V PCB
Selector Switch illuminated Φ16mm 3 positions Spring return left & right to center Red Knob 2NO-2NC contact Full Voltage 120V AC LED PCB Terminal

The L6 Series (Oversize Heads) Family
The L6 Oversize Operator Series of pushbuttons and pilot devices are ideal for gloved personnel and provide an alternative to 22mm pushbuttons when 16mm panel cutouts are required. Oversize button heads for round, square, mushroom, selector and key switches.

Available with termination as 0.110" solder-tab / quick-connect or with PCB terminals. Locking lever removable contacts facilitate wiring harnesses or PCB applications to reduce wiring time.

Snap action contacts are available in either SPDT or DPDT configuration, and illuminated units are available with either LED or incandescent lamps that use an industry standard T1-3/4 midget flange base lamp. Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, a piezo buzzer, pushbutton selector, and several positive action IEC Compliant Emergency Stop switches.

Key Features
  • 5/8" (16mm) mounting holes
  • Locking lever removable contact blocks
  • Solder terminal or PCB terminal options
  • Available assembled or as sub-components
  • Worldwide approvals
  • Incandescent or LED illumination
  • Snap action contacts5/8" (16mm) mounting holes
  • Locking lever removable contact blocks
  • Solder terminal or PCB terminal options
  • Available assembled or as sub-components
  • Worldwide approvals
  • Incandescent or LED illumination
  • Snap action contacts
