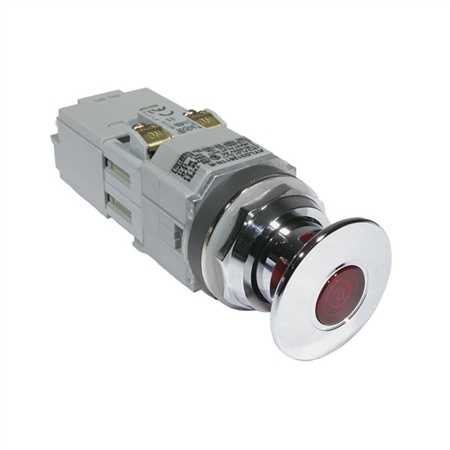

AYLD39902SDN-R-240V - IDEC TWTD Series Emergency Stop Push-Pull 40mm Mushroom

AYLD39902SDN-R-240V - IDEC
AYLD39902SDN-R-240V

Price: $61.19
Manufacturer SKU: AYLD39902SDN-R-240V


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: AYLD39902SDN-R-240V
Qty:

Description Technical Specs

AYLD39902SDN-R-240V - IDEC TWTD Series Emergency Stop Push-Pull 40mm Mushroom

The TWTD Series Family
The rugged "full size" TWTD series pushbuttons offer both variety and durability in an attractive design. With NEMA style mounting, which features a chrome plated locking ring that screws onto a die cast zinc body, stripped threads are now a thing of the past. Contacts screw on and feature clear inspection windows for monitoring contact surface condition.

All units include over 1/4" of rubber gaskets and an unbreakable steel anti-rotation ring for use in notched panel cutouts.

Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, and Emergency Stop switches. Button sizes are available up to 2-9/16" (65mm) in diameter.

Key Features
  • Rugged design includes chrome plated steel locking ring and die-cast zinc threaded body
  • Super bright LED or incandescent illumination
  • Modular construction for maximum flexibility (up to 6 contacts per switch)
  • NEMA 4X and IP65 watertight/oiltight panel seal
  • Available assembled or as sub-components
  • UL Listed, CSA Certified, Demko Approved, and CE Marked

pdfDownload the The TWTD Series Family Catalog in *.pdf format
