AVLD39901SDN-R-120V - IDEC TWTD Series LED Pushbutton

AVLD39901SDN-R-120V - IDEC
AVLD39901SDN-R-120V

Price: $63.17
Manufacturer SKU: AVLD39901SDN-R-120V


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: AVLD39901SDN-R-120V
Qty:

Description

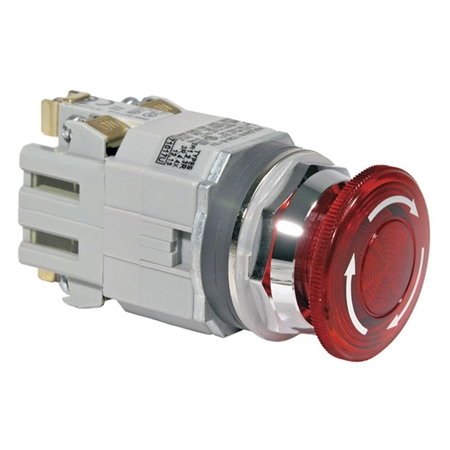

AVLD39901SDN-R-120V - IDEC TWTD Series LED Pushbutton

The TWTD Series Family
The rugged "full size" TWTD series pushbuttons offer both variety and durability in an attractive design. With NEMA style mounting, which features a chrome plated locking ring that screws onto a die cast zinc body, stripped threads are now a thing of the past. Contacts screw on and feature clear inspection windows for monitoring contact surface condition.

All units include over 1/4" of rubber gaskets and an unbreakable steel anti-rotation ring for use in notched panel cutouts.

Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, and Emergency Stop switches. Button sizes are available up to 2-9/16" (65mm) in diameter.

Key Features
  • Rugged design includes chrome plated steel locking ring and die-cast zinc threaded body
  • Super bright LED or incandescent illumination
  • Modular construction for maximum flexibility (up to 6 contacts per switch)
  • NEMA 4X and IP65 watertight/oiltight panel seal
  • Available assembled or as sub-components
  • UL Listed, CSA Certified, Demko Approved, and CE Marked

pdfDownload the The TWTD Series Family Catalog in *.pdf format
