AM50-25B - Federal Signal Speaker, 4 Inch, transformer coupled, beige

Home > Manufacturers > E - J > Federal Signal > Public Address > AM50 AudioMaster Public Address 2 Watt Re-Entrant Speaker >

AM50-25B

Price: $125.39

Manufacturer SKU: AM50-25B
Manufacturer ID: 78297960075

Availability: Usually Ships in 1 to 2 Weeks
Part Number: AM50-25B

Qty:

Description

AM50-25B - Federal Signal Speaker, 4 Inch, transformer coupled, beige

Overview:

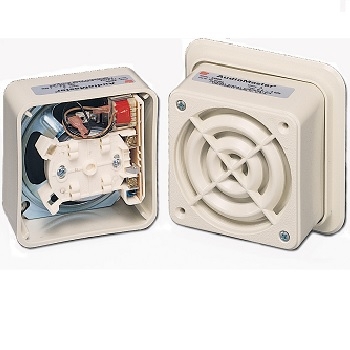

The Federal Signal Model AM50 is a compact, 2 watt, transformer coupled speaker for use in public address or paging applications. The unique design of this four-inch square speaker centers around the short, folded, re-entrant horn that is interposed between the diaphragm and the surrounding space. The beige, thermoplastic, flame-retardant housing provides greater efficiency and frequency response while blending easily into commercial and industrial spaces.

Power handling for the AM50 is 2 watts with transformer taps of 2, 1, 1/2, and 1/4. A moveable contact clip is used to select the power output. The AM50 comes factory preset in the 1/4 watt position. Two models of the speaker are available for use in 25Vrms and 70Vrms distributed systems. This speaker is supplied with wiring terminals and strain relief for inbound and outbound speaker wiring.

The AM50 is designed primarily for wall mounting and includes a trim ring for adapting to any standard four-inch square or weatherproof back box. This speaker is Underwriters Laboratories Listed for "Fire Protective Signaling Use" and California State Fire Marshall Approved.

Features:

Transformer coupled

25 or 70Vrms

2 watt

Several mounting options

Re-entrant horn design

Pre-assembled

Type 3R with WB box

UL Fire Listed

UL 1480 and CSFM Approved

pdf

Download the AM50-25B Datasheet in PDF format

Download the AM50 AudioMaster Public Address 2 Watt Re-Entrant Speaker Instruction Sheet in PDF format
