AM15XD2 - Federal Signal Speaker, 15 watts, 8 ohms, hazardous location

AM15XD2 - Federal Signal
AM15XD2

Price: $511.41
Manufacturer SKU: AM15XD2
Manufacturer ID: 78297920823


Free Shipping
Availability: Usually Ships in 1 to 2 Weeks
Part Number: AM15XD2
Qty:

Description

AM15XD2 - Federal Signal Speaker, 15 watts, 8 ohms, hazardous location

Overview:

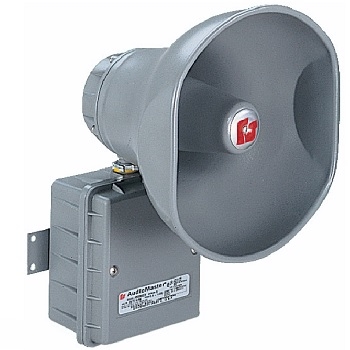

The Federal Signal Model AM15XD2 is an 8 ohm, re-entrant, Type 4X speaker for use in public address or paging applications. The AM15XD2 features a rugged cone and projector constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum housing. All external surfaces are sealed with a gray powder coat paint.

The AM15XD2 is rated for 15 watts and is UL Listed for Class 1, Division 2, Groups A,B,C, and D; Class II, Division 2, Groups F & G; and Class III environments. The design and seal of the speaker assembly and housing have been tested and approved by UL for Type 4X requirements.

Four screws inserted through the metal tabs located at the sides of the housing provide a quick wall mount installation. Two 1/2-inch conduit openings in the base of the housing simplify wiring and accommodate inbound and outbound audio wiring. The unique shape of the speaker projector provides a 60 degree sound dispersion. The projector is held in position with a Teflon coated lock ring that can be rotated 180 degrees in order to obtain the desired sound distribution.

The AM15XD2 can be used with the AudioMaster CTS series amplifiers and the AudioRouter to complete an industrial-grade public address system.

Features:

  • 8 ohm
  • 15 watt
  • Re-entrant horn design
  • Wall mount
  • 1/2-inch conduit openings
  • Class 1, Division 2 rated
  • Type 4X enclosure
  • UL 1480 Approved and cUL Listed

    pdfDownload the AM15XD2 Datasheet in PDF format


    pdfDownload the P-LS2B and P-LS2C Corrosion Resistant Zone 1 Loudspeaker Instruction Sheet in PDF format
