FS224 - SSAC Flasher 24VDC 3A 90Fpm 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Flashers > FS100 / FS200 Series >

FS224

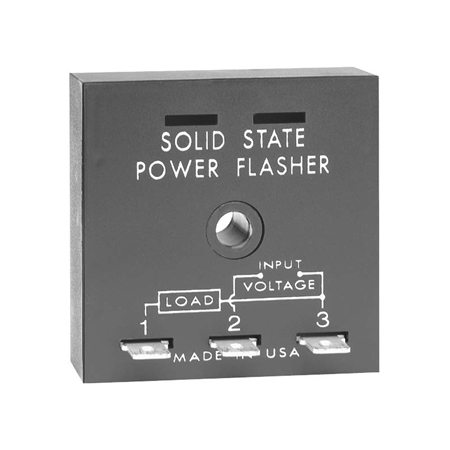

This is a family photo and may not be an accurate representation of the product.

Price: $71.23

Manufacturer SKU: FS224
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: FS224

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

FS224 - SSAC Flasher 24VDC 3A 90Fpm 2x2

The FS100 / FS200 Series Family

The FS100 Series (medium amp) may be used to control inductive, incandescent, or resistive loads. Input voltages of 24, 120, or 230VAC are available. Factory fixed flash rate of 90 FPM or may be ordered with a fixed, custom flash rate ranging from 10 to 300 FPM. Encapsulation provides protection against shock, vibration, and humidity. This group of solid-state flashers has proven reliability with years of use throughout the world.

Operation
Upon application of input voltage, the T2 OFF time begins. At the end of the OFF time, the T1 ON time begins and the load energizes. At the end of T1, T2 begins and the load de-energizes. This cycle repeats until input voltage is removed.
Reset: Removing input voltage resets the output and the sequence to T2.

Features:

Fixed at 90 FPM

Custom flash rate 10 - 300 FPM

Switches inrush currents up to 30A

24, 120, or 230VAC input voltages

Totally solid state & encapsulated

Auxiliary Products:

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Mounting bracket: P/N: P1023-6

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
