FEN20-4DIP-4DXP-DIN - 24VDC, 4 PNP Inputs & Channels and Multiprotocol DIN Ethernet I/O Station
TURCK’s new compact Ethernet multiprotocol I/O modules make standard
switching signals quickly and effectively bus-capable. Thanks to their
multiprotocol plug-and-play functionality, the FEN20 devices with
digital inputs and outputs are immediately ready for use in PROFINET®,
Modbus® TCP or EtherNet/IP™ systems. The device detects the protocol
used by listening to the communication traffic during the startup phase.
The
FEN20 devices are available in two different designs. The small
4DIP-4DXP, which measures as just 55x62.5x30 mm, fits in small control
boxes, control panels or other existing housings and can also be
retrofitted to make push buttons and LED indicators quickly Ethernet
ready. The large 16DXP variant, which measures 57x152x47 mm, is designed
for the same type of application and provides up to 16 I/Os. As a DXP
variant it can be operated both as an input or output. The module also
provides the division of the I/O-signals into three independent
potential groups which are isolated from each other – which can be used
for safety shutdowns – and can be centrally controlled.
Both
devices are equipped with an integrated web server to display diagnostic
information and provide access to configuration parameters. The web
page was created to offer a responsive design so that even a smartphone
can be used for simple diagnostics.
Selling Strengths
- Smallest Industrial Ethernet blocks offered on the market
- Internal web server can display diagnostics in plain text, simplifying troubleshooting and reducing downtime
- I/O signals divided into three independent potential groups which are isolated and can be used for safety shutdowns
Product Specifications
- IP20 rated
- 2 RJ45 ports for Ethernet connection
- Integrated Ethernet switch
- 10/100 Mbps
- 24 VDC, PNP
- Output current: 1.0 A
- Output channels continuously monitored by integrated diagnostic system
 Download the FEN20-4DIP-4DXP-DIN datasheet in *.pdf format
Download the FEN20 Start-up Guide in *.pdf format
| Type Code |
Product Code |
FEN20-4DIP-4DXP-DIN |
| Ident-No. |
6931092 |
| Ident-No. (TUSA) |
F6931092 |
| Number of Channels |
Number of Channels |
8 |
| Operating/Load Voltage |
12...30 VDC |
| Operating Current |
100 mA |
| Electrical Isolation |
500V Galvanic Zone-Zone and Zone-Ethernet |
| Supply Voltage |
24 VDC |
| Power Loss, Typical |
≤ 2.4 W |
| Voltage Supply Connection |
Screw Terminals |
| Inputs |
Number of Channels |
8 |
| Input Voltage |
24 VDC |
| Supply Current |
700 mA |
| Switching Threshold |
7V / 1.65mA |
| Low Level Signal Voltage |
< 7 VDC |
| High Level Signal Voltage |
7...30 VDC |
| Low Level Signal Current |
< 1.5 mA |
| High Level Signal Current |
> 2 mA |
| Input Delay |
2.5 ms |
| Max. Input Current |
6 mA |
| Outputs |
Number of Channels |
4 |
| Output Voltage |
12...30 VDC, Short-Circuit Proof |
| Output Current per Channel |
1 A |
| Output Total Current |
4 A |
| Load Type |
Resistive, Inductive, Lamp Load |
| Short-Circuit Protection |
Yes |
| System Data |
Transmission Rate |
10/100 Mbps; Full/Half Duplex; Auto Negotiation; Auto Crossing |
| Addressing Modes Ethernet |
via Software |
| Connection Technology Ethernet |
2 x RJ45 Sockets |
| Protocol Detection |
Automatic |
| Web Server |
192.168.1.254 (Default) |
| Service Interface |
Ethernet |
| Device Reset |
via Push Button |
| Modbus TCP |
Addressing |
Static IP, BOOTP, DHCP |
| Supported Function Codes |
FC1, FC2, FC3, FC4, FC5, FC6, FC15, FC16, FC23 |
| Simultaneous CIP Connections |
6 |
| Input Data Size |
Max. 1 Register |
| Input Register Start Address |
0 (0x0000 Hex) |
| Output Data Size |
Max. 1 Register |
| Output Register Start Address |
2048 (0x0800 Hex) |
| EtherNet/IP™ |
Addressing |
Acc. to EtherNet/IP™ Specification |
| Quick Connect (QC) |
< 150 ms |
| Device Level Ring (DLR) |
Supported |
| Simultaneous CIP Connections |
6 |
| PROFINET |
Addressing |
DCP |
| Conformance Class |
B (RT) |
| MinCycleTime |
1 ms |
| Fast Start-Up (FSU) |
< 150 ms |
| Diagnostics |
Acc. to PROFINET Alarm Handling |
| Topology Detection |
Supported |
| Automatic Addressing |
Supported |
| Specifications |
LEDs Err |
Green: No Error
Red: Module Error |

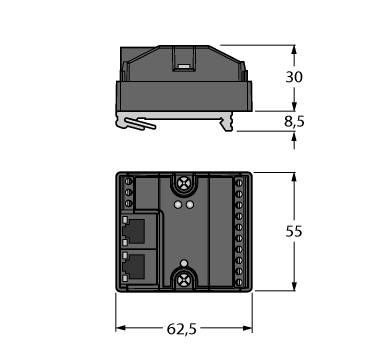

| Dimensions (W x L x H) |
55x62.5x30mm |
| Housing Material |
Fiber-Glass Reinforced Polyamide (PA6-GF30) |
| Operating Temperature |
-40...70°C |
| Storage Temperature |
-40...85°C |
| IP Rating |
IP20 |
| Approvals |
CE, cULus |
|
|
|
 |
|
 |
|
