116DEGEXA-FJ

Price: $1,691.32

Manufacturer SKU: 116DEGEXA-FJ
Manufacturer ID: 78264022170

Availability: Usually Ships in 3 to 5 Days
Part Number: 116DEGEXA-FJ

Qty:

Description

Technical Specs

NOTE: Mounting options not included. (Ordered separately)

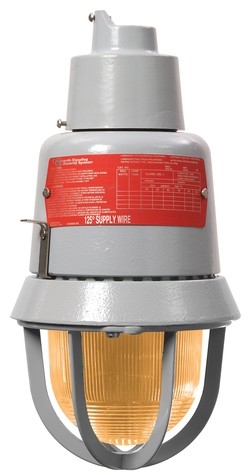

116DEGEXA-FJ - Edwards Signaling HAZ LOC STROB 16-33VDC GENESIS

The 116DEGEX-FJ is a regulated 24 volt, explosionproof fire alarm strobe that can be synchronized when connected to compatible Edwards fire alarm panels and power supplies or with the use of a separate synchronization module.

The strobe is UL1971 listed with a 125cd ceiling rating and a 60cd wall rating. The strobe has a Class I Groups C & D, Class II Groups E, F, & G, and Class III rating and can be mounted indoors or outdoors (NEMA type 3R and 4X enclosure).

The beacon can be wall, ceiling, or pendant mounted with the addition of separate mounting hardware.

pdf Download the 116DEGEXA-FJ specification sheet in *.pdf format
