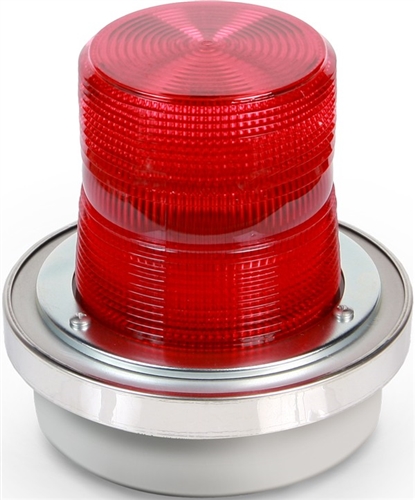

Edwards Signaling Products (50SINR-N5-40WH) Steady-On Halogen Beacon, Red, 120 VAC 50/60 Hz, 0.29 A
The Edwards 50SIN Series AdaptaBeacon steady-on lights are designed to
meet continuous visual signaling requirements. The unique double fresnel
lens is optically engineered to maximize brilliance. This is
accomplished with a series of complementing fresnels that cause the dome
to "fill" when the light is operating. Beam distance is also increased
with fresnel lenses. The polycarbonate lenses are available in six
colors: red, amber, blue and green, magenta and clear.
Designed
for indoor or outdoor installation. May be direct, 1/2" (13mm) conduit,
or box mounted on a 4" (102mm) octagon box on any plane. However,
vertical installation ensures maximum beam width projection. For
weatherproof installations units must be mounted vertically with dome
up. May be corner mounted using the Cat. No. CBR, corner mount bracket,
or wall mounted using the Cat. No. WBR, wall mount bracket. Cat. No.
92-GRD lens guard is available for additional protection against lens
breakage. See AdaptaBeacon Accessories.
Ideally suited for light
duty applications where a continuous steady-on incandescent light
signal is required or where ambient noise makes audible signals
difficult to hear. The gasketed weatherproof design assures installation
acceptability in most industrial and commercial locations.
- Weatherproof
- 40 Watt Halogen Lamp
- Optically designed fresnel lens
- Cast base can be utilized as junction box
 Download the 50SIN Series AdaptaBeacon Steady-On Lights PLC Compatible brochure in *.pdf format
|
Item Number:
|
50SINR-N5-40WH
|
|
Brand:
|
Edwards Signaling
|
|
Item Category:
|
Visual Signaling Devices
|
|
Subcategory:
|
Signal Lights
|
|
Series:
|
50SIN
|
|
Mode of Operation:
|
Steady Burning
|
|
Voltage:
|
120 VAC
|
|
Color:
|
Red
|
|
Lamp Type:
|
Halogen
|
|
Mounting:
|
Conduit
|
|
Hazardous Location Rated:
|
No
|
|
Explosion Proof:
|
No
|
|
Marine Listed:
|
No
|
|
Candlepower:
|
3,328
|
|
Estimated Lamp Life:
|
20,000 Hours
|
|
Lamp Wattage:
|
40 Watts
|
|
Operating Currrent:
|
0.29 Amps
|
|
Approvals:
|
UL:cUL
|
|
RoHS:
|
No
|
|
H x W x D (in.):
|
5.88 x 6 x 6
|
|
|
|
|
 |
|
 |
|
|
|
