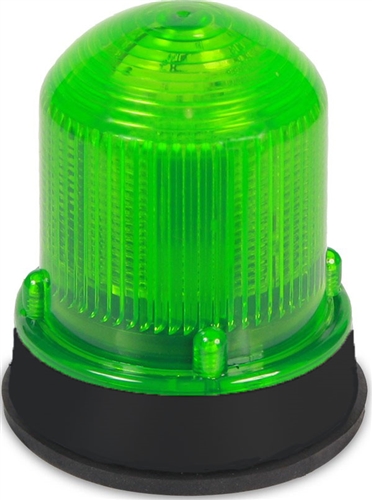

Edwards Signaling Products (125HALSG120AB) 125 Class Steady-On Halogen Beacon, Black Base, Green, 120V AC 50/60 Hz, 0.200A

125HALSG120AB

Price: $131.26

Manufacturer SKU: 125HALSG120AB

Availability: Usually Ships in 3 to 5 Business Days
Part Number: 125HALSG120AB

Qty:

Description

Technical Specs

Edwards Signaling Products (125HALSG120AB) 125 Class Steady-On Halogen Beacon, Black Base, Green, 120V AC 50/60 Hz, 0.200A

The Edwards 125 Class Halogen beacons are UL and cUL listed signaling devices, available in two versions, flashing and steady-on. Both versions feature a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. Both the flashing and steady-on beacons are available with either a black or gray base, and amber, blue, clear, green or red lens.

The 125 Class Halogen beacons can be mounted on 1/2" or 3/4" NPT conduit using a 1/2" internal or 3/4" external conduit hub that comes with the unit. It can also be panel-mounted using the mounting gasket provided with the unit. When panel-mounting the 125 Class Halogen, the surface and construction details of the panel must be taken into consideration to ensure the integrity of the outdoor, NEMA 4X rating is fully maintained.

Available in 24V DC, 24V AC or 120V AC
Available with gray or black base
Option for panel or conduit mounting
Available in Flashing or Steady-On versions
Available with amber, blue, clear, green or red lens
-31F to 150F (-35C to 66C) operating temperature
Protective wire guard available, Cat. No. 125GRD

Download the 125 Class Steady-on Halogen Beacons brochure in *.pdf format
