Edwards Signaling Products (125XBRiRGA120A) Chameleon, Red, Green, Amber, Gray Base Red, Green, Amber 120V AC

The Edwards 125XBRi Series XTRA-BRITE LED Multi-Status Indicator is a UL and cUL listed, multi-color visual signaling device. It features a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. The lens is made of shatter resistant polycarbonate.

XTRA-SAFE Technology enables status indication for those who are color blind

Available in 24V DC or 120V AC

Available with gray or black base

Available in Red/Blue/Amber or Red/Green/Amber

Immune to shock and vibration

Option for panel or conduit mounting

31F to 150F (-35C to 66C) operating temperature

PLC Compatible

Protective wire guard available, Cat. No. 125GRD

The lights are available in 24V DC and 120V AC @ 50/60 Hz, in either Red/Blue/Amber
or Red/Green/Amber.

Download the 125XBRi Series specification sheet in *.pdf format

Item Number: 125XBRIRGA120A Brand: Edwards Signaling Item Category: Visual Signaling Devices Subcategory: Signal Lights Series: 125XBRI Mode of Operation: Flashing;Steady Burning Voltage: 120 VAC Color: Red;Green;Amber Lamp Type: LED Mounting: Conduit;Panel Ingress Protection: NEMA 4X Hazardous Location Rated: No Explosion Proof: No Marine Listed: No Estimated Lamp Life: 148,000 Hours Operating Currrent: 0.1 Amps Operating Temp.: -31 to 150 Degrees F Approvals: UL;cUL RoHS: No H x W x D (in.): 3.88 x 3.25 x 3.25 Net Weight: 9.76 OZ Gross Weight: 3 lb 8 oz

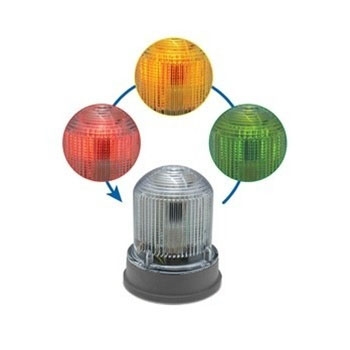

Edwards Signaling's NEW 125XBRi Multi-status Indicator is more "chameleon-like" than ever. New Adaptive Design: One device does it all

With a quick change to the new 125XBRi Chameleon's dip switch settings, these flexible multi-status indicators instantly adapt for use with or without control from an external PLC, PAC, or control relay. Now, regardless of the application, you will have just the right device for the job.

XTRA-SAFE^TM Enabled
The Chameleon 125XBRi devices ship as standard with Edwards Signaling's XTRA-SAFE^TM Technology (patent pending) Enabled. XTRA-SAFE multi-status indicating devices employ patented combinations of color AND flash-rate to provide more definite status indication to those who are color-blind. With XTRA-SAFE, when Chameleon multi-status indicators are turned red, they pulse at a rate of 240 flashes per minute, further emphasizing the urgency which the color red typically connotes. When amber, these devices pulse at a "less urgent" rate of 120 flashes per minute. When Chameleon multi-status indicators are turned blue or green and no other colors are activated, the Chameleon devices remain "steady-on" and do not flash. Even in extreme cases where no color is perceived, flash-rate variation provides a redundant layer of visual indication.

When XTRA-SAFE Technology is enabled, and multiple colors are energized, the device will cycle through the energized colors at the following pre-set flash-rates:

Red: 240 FPM
Amber: 120 FPM
Green or Blue: 65 FPM

XTRA-SAFE Disabled
While in most cases, the added layer of safety gained by operating a multi-status indicator with XTRA-SAFE Technology is desirable, some applications may not require differentiation in flash rates. In other applications, changes do not correspond to escalating levels of urgency. The adaptive design of the new Chameleon 125 XBRi allows the product to be adapted to accommodate these requirements through simple dip switch configuration. With XTRA-SAFE Disabled, when red or amber, the unit pulses at a rate of 65 flashes per minute. When Chameleon multi-status indicators are turned green or blue and no other colors are energized, the Chameleon devices remain "steady on" and do not flash.
When XTRA-SAFE Technology is disabled, and multiple colors are energized, the device will cycle through all energized colors at 65 FPM.

Externally Controlled
The Chameleon multi-status indicators can also be used in applications where they will be controlled "externally" using a Programmable Logic Controller (PLC) or other such external controller. When externally controlled by a PLC, activation of colors and flash-rate are fully customizable, and can be programmatically determined. In applications, where multiple colors are activated simultaneously, the lights operate on a priority with red highest, amber second and blue or green, the lowest.

The 125XBRi Chameleon can be mounted on 1/2" or 3/4" NPT conduit using a 1/2" internal or 3/4" external conduit hub that comes with the unit. It can also be panel mounted using the mounting gasket provided with the unit. When panel mounting the 125XBRi, the surface and construction details of the panel must be taken into consideration to ensure the integrity of the outdoor, NEMA 4X rating is fully maintained.
