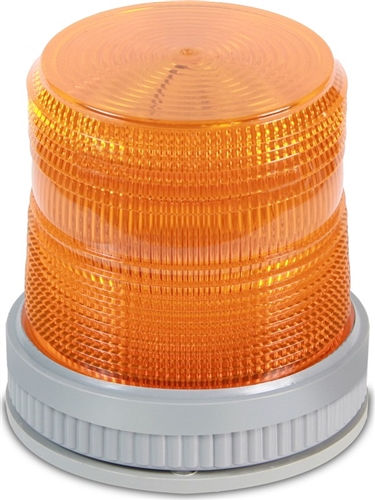

Edwards Signaling Products (105XBRMA120A) XTRA-BRITE LED Adverse Location Signal Amber 120V AC, 0.108A
The 105XBRM Series LED visual signals are heavy duty, reliable, UL, cUL
(General Utility) (misc. device/control unit accessory) beacons. The
105XBRM Series features a UL listed Type 4X enclosure and is UL Listed
for Marine Use. These signals are designed for use in industrial
applications or in applications where a Type 4X enclosure is required.
The 105XBRM LED series come in a steady-on mode, and can easily be set
to a 65 fpm flashing mode. The base is manufactured from
glass-reinforced thermoplastic polyester resin and the double fresnel
lens is made of shatter resistant polycarbonate.
- Available in 24V DC or 120V AC
- Three mounting bases: 3/4" pipe mount attachment, outlet box attachment, or wall mounting bracket
- 65 fpm mode field selectable via dip switch
- Immune to shock and vibration
- -31F to 212F (-35C to 100C) operating temperature
The 105XBRM Series has three different configurations for mounting that
include the 105BX junction box, the 105BM mounting bracket, and the
105PM pipe mount attachment. The unit can be mounted on 3/4" NPT using the
105PM pipe attachment. It can also be surface mounted using the 105BX
junction box, or wall mounted using the 105BX junction box with the
105BM mounting bracket.
All three mounting options are
non-conductive plastic fixtures and do not provide earth-ground
continuity when attached to metallic wiring systems. They are intended
for use with the 105XBRM visual signals only when earth-grounding is not
required. They can only be used with metallic wiring systems when
installed at the end of the run.
 Download the 105XBRi Series Multi-Mode LED specification sheet in *.pdf format
|
Item Number:
|
105XBRMA120A
|
|
Brand:
|
Edwards Signaling
|
|
Item Category:
|
Visual Signaling Devices
|
|
Subcategory:
|
Signal Lights
|
|
Series:
|
105XBRM
|
|
Mode of Operation:
|
Flashing;Steady Burning
|
|
Voltage:
|
120 VAC
|
|
Color:
|
Amber
|
|
Lamp Type:
|
LED
|
|
Flash Rate/Minute:
|
65
|
|
Mounting:
|
Pipe;Outlet Box;Wall
|
|
Ingress Protection:
|
NEMA 4X
|
|
Hazardous Location Rated:
|
Yes
|
|
Explosion Proof:
|
No
|
|
Marine Listed:
|
Yes
|
|
Estimated Lamp Life:
|
148,000 Hours
|
|
Operating Currrent:
|
0.108 Amps
|
|
Operating Temp.:
|
-31 to 212 Degrees F
|
|
Approvals:
|
UL
|
|
RoHS:
|
No
|
|
H x W x D (in.):
|
4.75 x 3.75 x 3.75
|
|
Net Weight:
|
1 lb 3 oz
|
|
Gross Weight:
|
5 lb
|
|
|
|
|
 |
|
 |
|
|
|
