Edwards Signaling Products (58R-N5-100WH) 100 Watt Division 2 Rotating Halogen Beacon, Red, 120 VAC 50/60 Hz, 1 A

58R-N5-100WH - Edwards Signaling Products
58R-N5-100WH

Price: $884.35
Manufacturer SKU: 58R-N5-100WH


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: 58R-N5-100WH
Qty:

Description Technical Specs

Edwards Signaling Products (58R-N5-100WH) 100 Watt Division 2 Rotating Halogen Beacon, Red, 120 VAC 50/60 Hz, 1 A

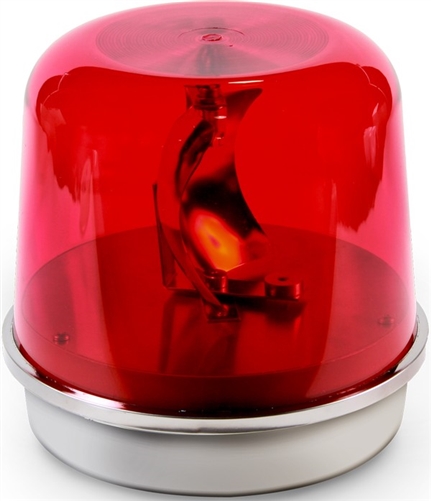

The Edwards Signaling 58 Series AdaptaBeacon is a high profile, heavy duty rotating beacon in a NEMA Type 4X enclosure designed to meet hazardous location requirements in industrial, commercial, or institutional applications. The polycarbonate dome allows for easy cleaning.

The light mounts to 3/4" (19mm) NPT conduit. It may be corner mounted using the Cat. No. CBR, corner mount bracket, or wall mounted using the Cat. No. WBR, wall mount bracket. See AdaptaBeacon Accessories. For weatherproof applications, the unit must be mounted vertically, with the dome facing up.

Domes are available in six colors: red, amber, blue, green, magenta and clear.

Ideally suited for applications where high ambient noise levels make audible signals difficult to hear or other types of visual signals (strobes or flashing lights) hard to distinguish. It can be used to inform of equipment status changes, communicate malfunctions, or alert to security breaches.

Edwards Signaling 58 Series Halogen Lights features and benefits:
  • Weatherproof
  • Hazardous Location Listed
  • Motor driven reflector
  • 100W Bayonet Base Halogen Lamp

pdfDownload the 58 Series Rotating Halogen specification sheet in *.pdf format
