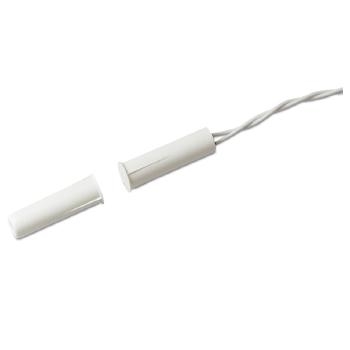

GE's 1070 series press-fit switch is an 11 mm diameter magnetic contact with wire leads. Use no glue or screws to mount; small ribs on the housing hold the contact in place. The heavy-duty housing is resist against crushing from swelling wood. Use indoors or outdoors for an attractive recessed installation.

GE high performance magnetic contacts have been designed to facilitate installation and ensure durability and dependability. Most are conservatively rated at 10,000,000 cycles, guaranteeing a long life. Every reed connection is hand soldered and each magnetic contact is tested before leaving the factory, 100% of the time.

Reed legs are plated with rhodium or ruthenium, and hermetically sealed in dry nitrogen. This offers superior protection against sticking and provides a moisture free environment therefore preventing corrosion.

• 9.5 mm press-fit mounting, no screws or glue required
• Heavy-duty housing resists crushing
• Unobtrusive and neat
• Attractive, added security of recessed installation

Download the 1070-N specification sheet in *.pdf format
