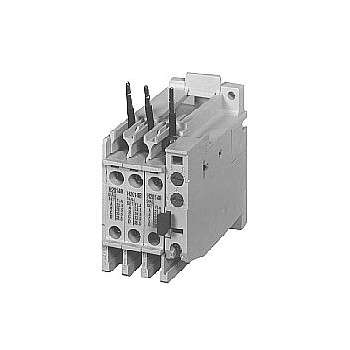

C306GN3B - Eaton Cutler-Hammer Thermal Overload Relay, Freedom Series, Panel Mounted, 3-Pole, 75 AMP

C306GN3B - Eaton
C306GN3B

Price: $517.20
Manufacturer SKU: C306GN3B


Free Shipping
Availability: Normally Stocked
Part Number: C306GN3B
Qty:

Description

Eaton Cutler-Hammer C306 Thermal Overload Relays:

Eaton Cutler-Hammer C306 Thermal Overload Relays are designed for use with CE or CN non-reversing and reversing contactors. Four sizes are available for overload protection up to 144A.

Features:
  • Selectable manual or automatic reset operation
  • Interchangeable heater packs adjustable 24% to match motor FLA and calibrated for use with 1.0 and 1.15 service factor motors.
  • Heater packs for 32A overload relay will mount in 75A overload relay - useful in derating applications such as jogging
  • Class 10 or 20 heater packs
  • Load lugs built into relay base
  • Bimetallic, ambient compensated operated. Trip free mechanism
  • Electrically isolated NO-NC contacts (pull RESET button to test).
  • Overload trip indication
  • Shrouded or finger proof terminals to reduce possibility of electrical shock and/or vibration
