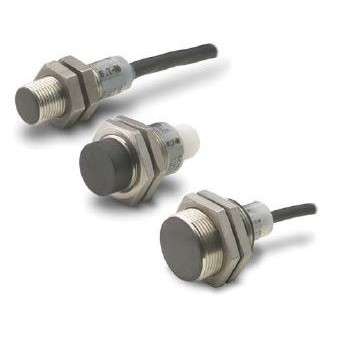

E57 Premium+ Series Short Barrel Sensors:

The Eaton E57 Premium+ Short Barrel Series Inductive Proximity Sensors feature the same sensing ranges as the standard length sensors, but in a body with a substantially shorter length. This allows the sensors to be used in applications where mounting space is limited.

The robust Premium+ Series design has been added to the short barrel line. This means these sensors have been upgraded to include rugged stainless steel barrels, polycarbonate end bells, shock-resistant front cap and potting compound. Plus, the short barrel line now includes a choice of AC, AC/DC and DC-only, 12, 18 and 30 mm sensors. Cable models feature an optional extra long 5-meter cable. Every sensor is designed with 360 degree LED.

Features:

• Manufactured to take physical and environmental abuse
• Designed with stainless steel barrel and new potting compound for robust, high temperature, high pressure washdown, as well as intense shock and vibration applications
• Unmatched high noise immunity eliminates problems associated with electrical noise (all models > 20V/meter)
• 360 degree output status indicator is visible from any angle and in any light condition
• Resettable short circuit protection and reverse polarity in select models
• Reverse polarity protection in three-wire DC versions
• Small size to fit in tight spaces
• Choice of cable for low cost wiring, or micro connector for quick installation or replacement
• Cable models include an extra long 5-meter cable as option
