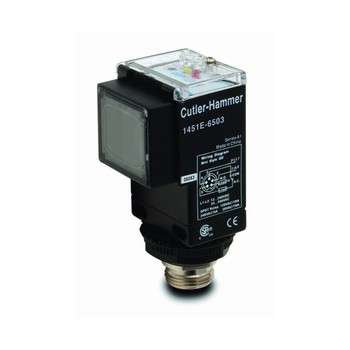

Eaton Cutler-Hammer Enhanced 50 Series Sensors:

The Eaton Cutler-Hammer Enhanced 50 Series Photoelectric Sensors offer flexibility, durability and high optical performance in a cost effective self-contained package. Choose from three output types, four time delay functions, six sensing modes and four connection styles to tailor the sensor to exactly meet your needs.

Sensors are available in thrubeam, reflex, polarized reflex, diffuse reflective, clear object, and fiber optic sensing modes. Brackets are available for easy mounting and to allow precise adjustment of sensor alignment.

Features:

• High optical performance models including a 500ft (152m) thru-beam and a 10ft (3m) diffuse reflective unit
• Output options include a 3 Amp SPDT relay
• All units offer light/dark selection
• Logic options include ON-delay, OFF-delay, ON/OFF-delay and oneshot delay
• Fiber optic sensors operate in thru-beam or diffuse reflective mode depending on the fiber optic cable selected
• Fully potted construction for use in areas subject to washdown, high shock and/or vibration
• Choice of pre-wired power cable, built-in miniconnector, built-in microconnector and pigtail micro-connector versions. Standard pre-wired cable length is 6 ft (2m)
• Variety of brackets available including ball swivel
