ESD52233 - SSAC Timer Delay-on-Make/Int 24VAC Ext Adjustable 0.1 10m Ext Adjustable 0.1 10m 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > ESD5 Series >

ESD52233

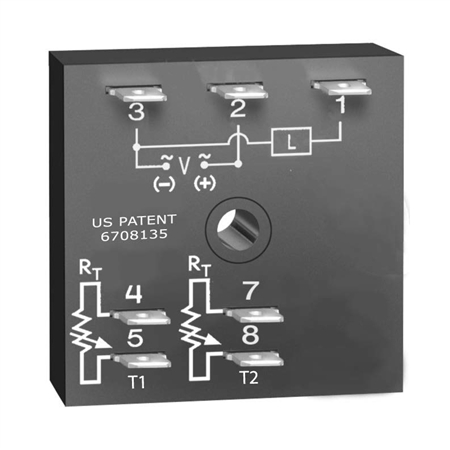

This is a family photo and may not be an accurate representation of the product.

Price: $71.79

Returnable: NOT RETURNABLE
Manufacturer SKU: ESD52233
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: ESD52233

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

ESD52233 - SSAC Timer Delay-on-Make/Int 24VAC Ext Adjustable 0.1 10m Ext Adjustable 0.1 10m 2x2

The ESD5 Series Family

The ESD5 Series is an accurate, solid-state, delayed interval timer. It offers a 1A steady, 10A inrush output and is available with adjustable or fixed time delays of 0.1 seconds to 1000 minutes in six ranges. Input voltages of 24, 120, or 230VAC are available. Encapsulation offers protection against shock and vibration. Adjustment options are factory fixed, onboard or externally adjustable. The repeat accuracy, under stable conditions, is 0.1%. The factory calibration of the time delay is ± 5%.

Operation (Delayed Interval):
Upon application of input voltage, the T1 delay-on-make time delay begins and the output remains de-energized. At the end of this delay, the output energizes and the T2 interval delay begins. At the end of the interval delay period, the output de-energizes.
Reset: Removing input voltage resets the output and the time delays, and returns the sequence to the first delay.

Features:

Delay-on-Make with interval output

0.1s - 1000m in 6 ranges

±0.1% repeat accuracy

±5% factory calibration

Factory fixed, onboard or external adjust

Totally solid state & encapsulated

24, 120 or 230VAC

1A, solid-state output

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Mounting bracket: P/N: P1023-6

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The ESD5 Series Datasheet datasheet in *.pdf format
