ERDM126 - SSAC Timer Delay-on-Make 12VDC Adjustable 0.6 60s Relay 2.5x3.5

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > ERDM Series >

ERDM126

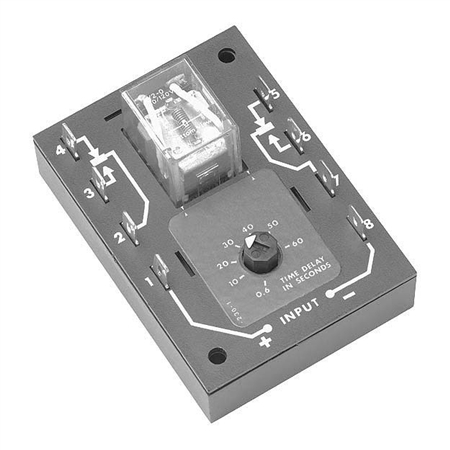

This is a family photo and may not be an accurate representation of the product.

Price: $73.17

Returnable: NOT RETURNABLE
Manufacturer SKU: ERDM126
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: ERDM126

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

ERDM126 - SSAC Timer Delay-on-Make 12VDC Adjustable 0.6 60s Relay 2.5x3.5

The ERDM Series Family

Econo-Timers are a combination of digital electronics and a reliable electromechanical relay. These devices offer a DPDT relay output for relay logic circuits, and isolation of input to output voltages. Cost effective for OEM applications, such as random starting, sequencing ON, switch de-bouncing, anti-short cycling, and other common delay-on-make applications.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

Factory fixed, onboard or external adjust

Delays from 0.1s - 1000m

±0.5% repeat accuracy

Encapsulated, digital circuitry

Isolated, 10A, DPDT output contacts

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-16

P/N: P1004-16-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Download the The SSAC Product Line catalog in *.pdf format
Download the The ERDM Series Datasheet datasheet in *.pdf format
