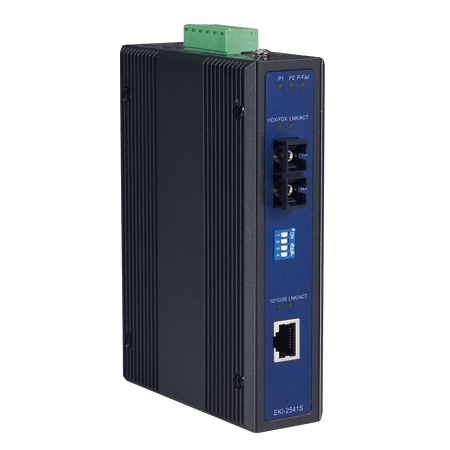

EKI-2541SI-AE - Advantech EKI-2541SI-AE Ethernet to Singlemode Fiber Media Converter (Wide Temp)

EKI-2541SI-AE - Advantech
EKI-2541SI-AE

Price: $426.12
Manufacturer SKU: EKI-2541SI-AE


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: EKI-2541SI-AE
Qty:

Description

EKI-2541SI-AE - Advantech Ethernet to Singlemode Fiber Media Converter (Wide Temp)
EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-2541M/2541S is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

Link Fault Pass-Through (LFP)
EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

10/100T (X) to Single-Mode SC Type Fiber Optic Industrial Media Converter
  • Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
  • Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port
  • Provides internal jumper for Link Fault Pass-through (LFP) setting
  • Supports full/half duplex flow control
  • Supports store and forward transmission
  • Supports auto-negotiation
  • Supports MDI/MDI-X auto crossover
  • Supports redundant 12-48 VDC power input
  • Provides flexible mounting: DIN-rail and Panel mount
pdfDownload the EKI-2541SI-AE brochure in *.pdf format
