ECSW4MBHT - SSAC Current Sensor Window 120VAC 2 20A 0.5 50s 6s Startup Terminals
ECSW4MBHT - SSAC
ECSW4MBHT

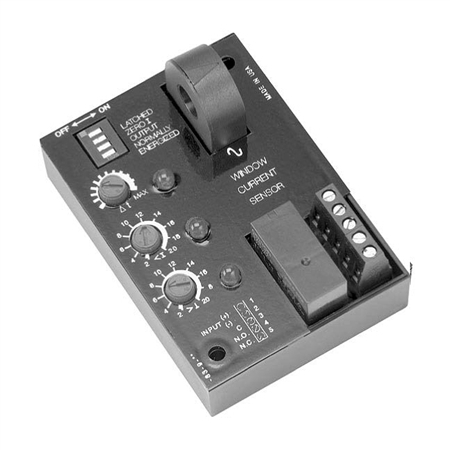

This is a family photo and may not be an accurate representation of the product.

Price: $218.64
Manufacturer SKU: ECSW4MBHT


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: ECSW4MBHT
Qty:

Description

ECSW4MBHT - SSAC Current Sensor Window 120VAC 2 20A 0.5 50s 6s Startup Terminals

The ECSW Series Family

The ECSW Series of single-phase, AC window, current sensors includes adjustable overcurrent and undercurrent trip points. Detects locked rotor, jam, loss of load, an open heater or lamp load, a broken belt, or loss of suction. LED's aid in trip point adjustment and provide fault indication. The built-in toroidal sensor eliminates the need for an external current transformer. The output can be electrically latched after a fault, or automatically reset. Remote resetting of a latched output by removing input voltage. The unit includes switch selectable zero current detection and normally de-energized or energized output operation. Time delays are included to improve operation and eliminate nuisance tripping.

Features:

  • Overcurrent & undercurrent (window current) sensing
  • Adjustable overcurrent & undercurrent trip points
  • Current sensor is included
  • Isolated, 10A, SPDT output contacts
  • LED indicators
pdfDownload the The SSAC Product Line catalog in *.pdf format
pdfDownload the The ECSW Series Datasheet datasheet in *.pdf format
