Dodge Drum Pulleys
HE Heavy Duty Drum Pulleys
- Designed to CEMA specifications
- Standard crown face or straight face available
- 6” - 60” diameter and face widths exceeding 100” - others available upon request
- HE bushing system designed specifically for Dodge Conveyor pulleys
- Most dependable mounting system for conveyor pulleys
- One piece die formed rim through 18”
- Rolled rim over 18”
- Available from stock
HE Dimensions
|
Hub
|
A
|
B
|
Bushing
|
Max. Bore
|
Screw Torque (in.-lb.)
|
|
HE25
|
3/4
|
1.80
|
HE25
|
2-1/2
|
360
|
|
HE30
|
3/4
|
2.20
|
HE30
|
3
|
720
|
|
HE35
|
3/4
|
2.78
|
HE35
|
3-1/2
|
1080
|
|
HE40
|
3/4
|
2.93
|
HE40
|
4
|
1680
|
|
HE45
|
3/4
|
3.20
|
HE45
|
4-1/2
|
1680
|
|
HE50
|
3/4
|
3.70
|
HE50
|
5
|
2400
|
|
HE60
|
1
|
3.95
|
HE60
|
6
|
4200
|
|
HE70
|
1
|
4.45
|
HE70
|
7
|
6000
|
|
HE80
|
1-1/4
|
5.20
|
HE80
|
8
|
6000
|
|
HE100
|
1-1/4
|
6.45
|
HE100
|
10
|
7200
|
|
HE120
|
1-1/4
|
7.45
|
HE120
|
12
|
7200
|
Elevator Pulleys
- Single or dual end disc design
- Heavy, all steel construction
- Economical alternative in narrow belt applications
- Standard crown face or available straight face
- HE compression hubs
- Various diameters and face widths available
- QD and TAPER-LOCK hubs and bushings also available
- CEMA or Mine Duty Construction
- Engineered also available
Mine Duty Extra Drum Pulleys

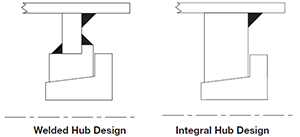

Mine Duty Extra Drum Pulleys are integral one-piece end discs that are machined, drilled and tapped to accept bushing and bushing bolts, serving as the hub and end disc in one piece, eliminating the hub to end disc weld - the most common failure point on a conveyor pulley.
- Standard crown face or straight face available
- 6” - 60” diameter and face widths exceeding 100” - others available upon request
- HE bushing system - 14º taper - designed specifically for Dodge conveyor pulleys
- Greater capacity than standard competitors' mine duty pulleys
- Available in spiral drum construction
- Increased rim thickness over CEMA construction
TAPER-LOCK Heavy Duty Drum Pulleys
- Designed to CEMA specifications
- Standard crown face or straight face available
- 6” - 60” diameter and face widths exceeding 100” - others available upon request
- Flush mount, compact design mounting system
- One piece die formed rim through 18”
- Rolled rim over 18”
- Available from stock

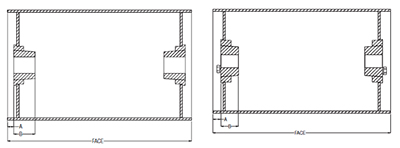

TAPER-LOCK Dimensions
|
Hub
|
A
|
B
|
Bushing
|
Max. Bore
|
Screw Torque (in.-lb.)
|
|
K25
|
1
|
1-3/4
|
2517
|
2-1/2
|
430
|
|
F25
|
1
|
1-3/4
|
2517
|
2-1/2
|
43-
|
F30
|
1
|
2
|
3020
|
3
|
800
|
K35
|
1
|
3-1/2
|
3535
|
3-1/2
|
1000
|
K40
|
1
|
4
|
4040
|
4
|
1700
|
K45
|
1
|
4-1/2
|
4545
|
4-1/2
|
2450
|
K50
|
1
|
5
|
5050
|
5
|
3100
|
K60
|
2-1/4
|
5
|
6050
|
6
|
7820
|
K70
|
2-1/4
|
6
|
7060
|
7
|
7820
|
K80
|
2-1/4
|
6-1/2
|
8065
|
8
|
7820
|
K100
|
2-1/4
|
8-1/2
|
10085
|
10
|
13700
|
K120
|
2-1/4
|
10
|
120100
|
12
|
13700
|
QD Heavy Duty Drum Pulleys
- Designed to CEMA specifications
- Standard crown face or straight face available
- 6” - 60” diameter and face widths exceeding 100” - others available upon request
- Flange mount bushing system
- One piece die formed rim through 18”
- Rolled rim over 18”
- Available from stock
QD Dimensions
|
Hub
|
A
|
B
|
Bushing
|
Max. Bore
|
Screw Torque (in.-lb.)
|
SF
|
7/8
|
2-1/16
|
SF
|
2-1/2
|
360
|
E
|
1
|
2-3/4
|
E
|
3
|
720
|
F
|
1-1/16
|
3-3/4
|
F
|
3-1/2
|
900
|
JS
|
1-1/8
|
3-3/8
|
J
|
4
|
1620
|
MS
|
1-1/4
|
4-13/16
|
M
|
4-1/2
|
2700
|
NS
|
1-5/16
|
6
|
N
|
5
|
3600
|
PS
|
1-3/8
|
6-1/2
|
P
|
6
|
5400
|
WS
|
1-9/16
|
7-1/4
|
W
|
8
|
7200
|
SS
|
1-5/8
|
8-3/4
|
S
|
10
|
9000
|
ZS
|
1-9/16
|
8-3/4
|
Z
|
12
|
7200
|
|
|
