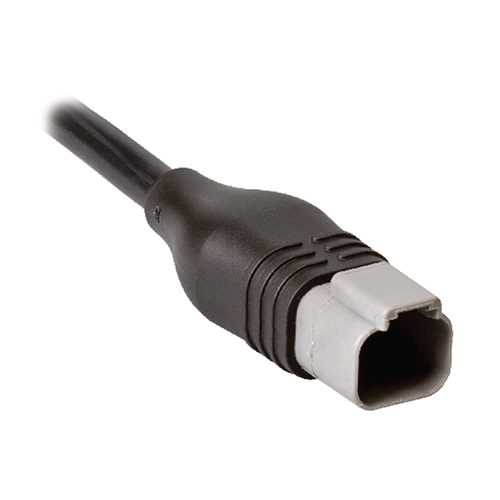

DT04-2P-2125-2M - Turck Deutsch DT Connector, Male, 2-Wire, 2M
* Available in any custom length with no maximum. Call us today to order a custom size.
The Deutsch DT Family
To reduce installation time and increase reliability of Deutsch connectors, TURCK developed its new Deutsch DT series of overmolded connectors for the mobile equipment industry. The newly designed connectors ensure longevity in demanding environments where shock, vibration, cold temperature, moisture and oils can affect performance.
Deutsch connectors are widely used in the heavy equipment sector, and TURCK developed its two-wire, pin and socket DT connectors to address the environmental needs of the industry. The overmolded design, TPE jacketing and IP67 rating provide additional reinforcement, abrasion and oil resistance, and superior performance in a ready-to-use solution. The connectors are ideal for wiring harness assemblies in vehicles, agricultural and construction equipment, or any application which requires a cost effect quick disconnect solution.
TURCK's history in overmolding connectors, coupled with our vast knowledge of designing jacketed cables, provided a natural opportunity to improve an industry standard. This Deutsch DT series is the first of a new overmolded Deutsch line, to improve low-cost and durable solutions for harsh applications.
TURCK's Deutsch DT series connectors feature a fully encapsulated rugged overmold which is IP67 rated. The cable performs well in low temperatures with a -40 degrees Celsius cold bend rating, is sunlight resistant and Oil Res II rated.
Cable Features
- 18 AWG Conductors
- Cut Through and Abrasion Resistant TPE
- Flexible and Oil Resistant
- Temperature Range -40°C to 105°C
- Sunlight Resistant
- Cold Bent Rated to -40°C
 Download the Deutsch DT Connectors Brochure in *.pdf format
Download the DT04-2P-2125-2M Datasheet in *.pdf format
|
Cable Length
|
2M
|
Deutsch Connector
|
DT04-2P
|
Deutsch Wedge Lock
|
W2P
|
Deutsch Terminals
|
0460-202-16141
|
Rated Current [A]
|
13.0 A
|
Molded Head Material/Color
|
TPU/Black
|
Outer Jacket Material/Color
|
TPE/Black
|
Conductor Insulation Material
|
PVC
|
Number of Conductors [AWG]
|
2x18 AWG
|
Protection Class
|
IP67
|
Cable Approvals
|
(UL) TC Direct Burial 90°C Dry/Wet 600V Sunlight Resistant Oil Res II -40°C or WTTC 90°C Dry/Wet 1000V or AWM 105°C 600V or CSA CIC/TC PVC/N 90°C Dry 75°C Wet 600V FT1 FT4 Sunlight Resistant -40°C
|
|
|
|
 |
|
 |
|
