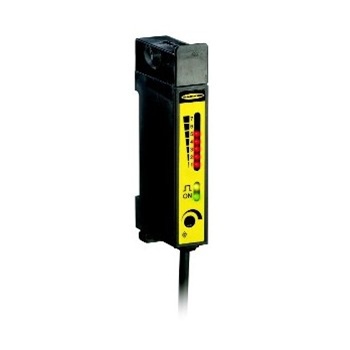

D12SN6FVQ - Banner Engineering D12 Series: Glass Fiber Optic, Range: depends on fiber; Input: 10-30V dc, Output: Complementary NPN, 6" Pigtail Quick-Disconnect Connector

D12SN6FVQ - Banner Engineering
D12SN6FVQ

Price: $247.00
Manufacturer SKU: D12SN6FVQ
Manufacturer ID: 33714


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: D12SN6FVQ
Qty:

Description

D12 series glass fiber optic sensor with Complementary NPN (sinking) output and a 6" Pigtail with pico-style Quick-Disconnect.

The D12 series glass fiber optic sensor features include:

  • DIN rail mounted
  • 500 microsecond response time for high-speed applications
  • 15-turn potentiometer for manual adjustment of sensitivity
  • 10 to 30V dc supply voltage
  • LED bargraph to show signal strength, sensing contrast, programming status and diagnostic warnings, when in 500 microsecond mode
  • Marginal gain indicator with alarm output, when in 500 microsecond mode
