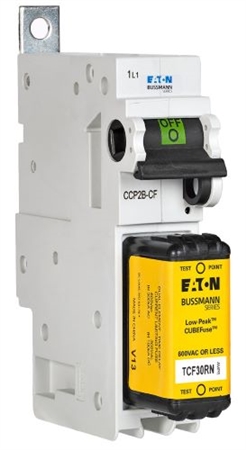

CCP2B-3-20CF Cooper Bussmann CCP BASE, 3 POLE, 20A CF PANEL BOARD
- Uses finger-safe Class CF CUBEFuse with Class J performance
- Extremely compact design at 25.4mm (1 inch) wide per pole
- High Short-Circuit Current Ratings at 200kA
- Disconnect rated to provide means for load isolation
- Full voltage rated at 600Vac
- UL 98 Listed and suitable for branch circuit disconnect and branch circuit protection
- 1-, 2- and 3-pole versions are horsepower rated
- UL and cULus Listed
- Open Fuse Indication per pole speeds troubleshooting
- Local fuse indication lights* are standard
- Optional wired remote open fuse indication can be utilized to
signal a PLC and open a contactor to de-energize all phases, if required
- Additional open fuse indication can be provided by using the time-delay indicating CUBEFuse in ratings from 6 to 100 amps
- IP20 finger-safe construction with 10 AWG wire or larger
- Built-in switch/fuse interlock prevents removing or installing a fuse while energized
- Permanent lockout/tagout and lock-on provision using a 1/4” lock
*Circuit must be closed for indication light to illuminate
|
Dimensions/ Volts/ Amps
|
See Data Sheet
|
|
Agency Information
|
UL 98 Listed, File E302370, Guide WHTY cULus to CSA Standard 22.2 No. 4-04, File 302370, Guide WHTY7 CE Compliant, RoHS compliant
|
|
Ratings
|
- Box Lug Connection: 18-6 AWG single or dual rated,
solid or stranded - 75C or higher - Cu only, 4 AWG single - 75C or
higher - Cu only.
- Spade Terminal Connection: Max. 30A suitable for use with #8-32 UNC screw.
- Box Lug and Spade Terminal suitable for line, load or accessory connection.
- Torque 0-60A: 18-10 AWG 20 lb-In, 8-4 AWG 35 lb-In.
- Torque 100A: 18-10 AWG Single 25 lb-In, 8-2 AWG Single 35 lb-In, 1 AWG Single 40 lb-In, 6 AWG Dual 45 lb-In
- Lockout/tag out: 4mm shank lock or standard pin-out devices.
- 35mm DIN rail mount.
- Local indication minimum operating voltage: 90Vac/115Vdc.
|
|
Environmental Data
|
Storage and operating temperature: -20C to 75C**
**For fuse performance under or above 25C, consult fuse performance
derating charts in the Cooper Bussmann publication titled Selecting
Protective Devices (SPD) reorder #3002.
|
|
Operating Temperature Range
|
-20C to +75C (for operation over or above 25C, consult fuse derating tables)
|
 Download the CCP2B-3-20CF specification sheet in *.pdf format
|
|
|
 |
|
 |
|
