CT1S45 - SSAC Timer HVAC 24VAC 0.75A Delay-on-Make 1s Delay-on-Break 45S

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > CT Series >

CT1S45

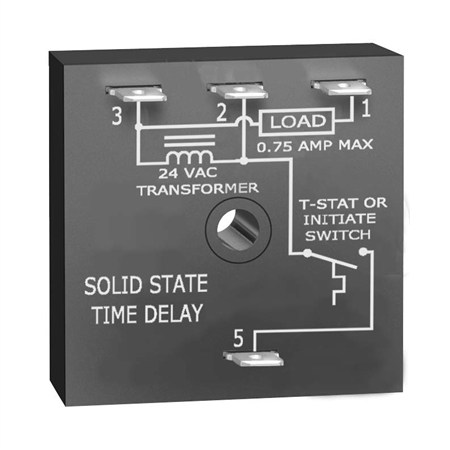

This is a family photo and may not be an accurate representation of the product.

Price: $38.86

Returnable: NOT RETURNABLE
Manufacturer SKU: CT1S45
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: CT1S45

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

CT1S45 - SSAC Timer HVAC 24VAC 0.75A Delay-on-Make 1s Delay-on-Break 45S

The CT Series Family

The CT Series combines a delay-on-make and delay-on-break time delay into one unit and may be used to control fan delays in heating and/or cooling equipment. The CT includes bypass circuitry to allow it to operate with cooling anticipators ≥ 3000 ohms. It is designed to operate in 24VAC control circuits. Several CT modules may be combined to provide sequencing on of any number of loads and sequencing off of the same loads, such as electric heating elements.

Operation (Delay-on-Make/Delay-on-Break):
Forced Air Heating or Air Conditioning (as shown): When the thermostat closes, the compressor relay is immediately energized. At the end of a fixed delay-on-make delay (T1), the fan relay is energized. When the thermostat opens, the compressor relay is de-energized and the delay-on-break delay is initiated. On completion of the fixed delay-on- break delay (T2) the fan relay is de-energized. If the thermostat is reclosed during the delay-on-break delay, the delay-on-break delay is reset and the fan relay remains energized. If the thermostat is closed when input voltage is applied, the delay-on-make delay (T1) begins as normal.
Reset: Removing input voltage resets the output and time delays.

Features:

Delay-on-make and delay-on-break in one unit

Use for fan delays in heating or cooling equipment

Use for multiple load sequencing

24VAC operation

Factory fixed delays from 1 - 600s in 1s increments

Auxiliary Products:

Female quick connect: P/N: P1015-64 (AWG 14/16)

Mounting bracket: P/N: P1023-6

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The CT Series Datasheet datasheet in *.pdf format
