CCMR.300TXP - Littelfuse CCMR.300TXP, CLASS CC DUAL ELEMENT TIME DELAY FUSE - ROHS, Voltage: 600/250, Amp Size: 3/10
CCMR.300TXP - Littelfuse
CCMR.300TXP

Price: $28.55
Manufacturer SKU: CCMR.300TXP
Manufacturer ID: CCMR.300TXP
(Minimum order):  10



Availability: Usually Ships in 3 to 5 Days
Part Number: CCMR.300TXP
Qty:

Description Technical Specs

CCMR.300TXP - Littelfuse CCMR Fuse 1 10 30AMP

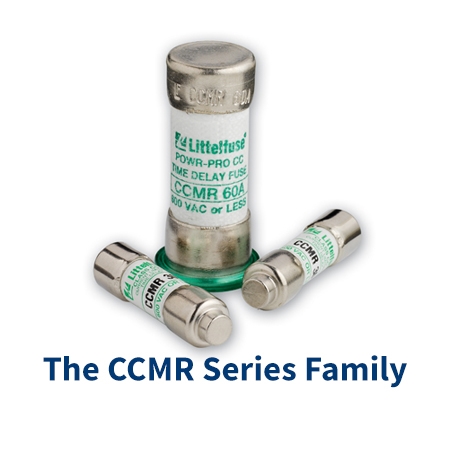

The CCMR Series Family

CCMR Series dual element, time delay fuses are recommend for space-saving protection of motor circuits up to 40 HP (download motor protection guide).
  • Only true dual-element time-delay CC fuses specifically engineered for motor branch circuit protection.
  • Provide Type II protection (no damage) to both NEMA-rated and the more sensitive IEC (International Electromechanical Commission) type motor circuit components.
  • Available in larger sizes - from 35 to 60 amperes! No other 600V fuse is available with this current carrying capacity in a package this small.
  • Compared to other UL Listed fuses, Class CC dual element fuses are the most current limiting, rating for rating.
  • Provide superior protection in a fraction of the space required by other fuse classes. - For example, when 600V three-pole, 30 A Class R fuse blocks are replaced by Littelfuse Class CC fuse blocks, panel-mounting space is reduced approximately 70%.
Safety:
  • 200,000 A.I.R. - Reliable interruption of all overcurrents up to 200,000 amperes.
  • Extremely current limiting - Reduces damage caused by heating and magnetic effects of short-circuit current...stops damaging short-circuit faster than any mechanical protective device.
pdfDownload the The CCMR Series catalog in *.pdf format
