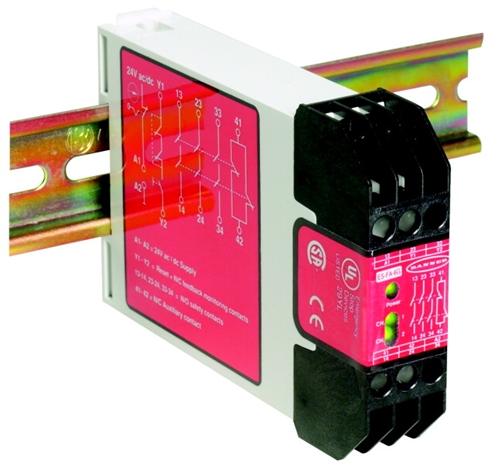

ES-FA-6G - Banner Engineering Emergency Stop Switch, Inputs: One 1-channel type; 24V ac/dc, Outputs: 3 channels; Terminal Block: Fixed, Dimension: 22.5mm (0.9") width

ES-FA-6G - Banner Engineering
ES-FA-6G

Price: $237.00
Manufacturer SKU: ES-FA-6G
Manufacturer ID: 55579


Free Shipping
Availability: Normally Stocked
Part Number: ES-FA-6G
Qty:

Description

ES-FA-6G - Banner Engineering Emergency Stop Switch, Inputs: One 1-channel type; 24V ac/dc, Outputs: 3 channels; Terminal Block: Fixed, Dimension: 22.5mm (0.9") width

Overview

  • Monitors external safety devices for contact failure or wiring fault
  • Offers 24V ac/dc supply voltage
  • Provides choice of models with two or three normally open (NO) immediate safety outputs
  • Features model with one normally closed (NC) non-safety auxiliary output
  • Includes 6 amp rating of safety outputs
  • Features removable terminal blocks
  • Provides automatic or manual reset
  • Responds in 25 milliseconds
  • Meets US and international standards
  • Rated IEC IP40; NEMA 1
