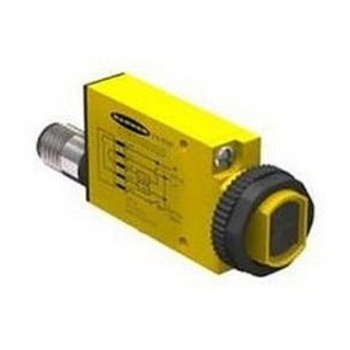

SM312CQDP - Banner Engineering MINI-BEAM: Infrared 880 nm Convergent; Focal Point: 16 mm; Input: 10-30V dc; Output: Bipolar: 1 NPN; 1 PNP; 6 Inch Pigtail Quick-Disconnect Connector

SM312CQDP - Banner
SM312CQDP

Price: $171.00
Manufacturer SKU: SM312CQDP
Manufacturer ID: 35721


Free Shipping
Availability: Normally Stocked
Part Number: SM312CQDP
Qty:

Description

SM312CQDP - Banner Engineering MINI-BEAM: Infrared 880 nm Convergent; Focal Point: 16 mm; Input: 10-30V dc; Output: Bipolar: 1 NPN; 1 PNP; 6 Inch Pigtail Quick-Disconnect Connector
  • Compact, modulated, self-contained convergent mode sensors for 10-30V dc operation
  • Infrared 880 nm
  • Includes Banner's exclusive AID alignment system
  • Switch-selectable for light operate or dark operate
  • Highly repeatable 1 millisecond response
  • Both sourcing and sinking outputs (150 mA max. each); continuous overload and short-circuit protected
  • Rugged, epoxy-encapsulated construction: meets NEMA standards 1, 2, 3, 3S, 4, 4X, 6, 12 and 13; IEC IP67
  • Physically and electrically interchangeable with 18 mm barrel-type photoelectrics
