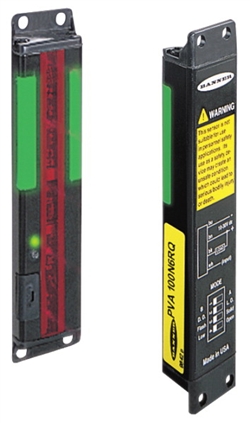

Overview

• Provides a reliable error-proofing system for assembly operations
• Indicates to an assembler which items to pick for a given operation, and the order in which to pick them
• Uses asynchronous emitter and receiver and requires no controller
• Offers 12 to 30V dc supply voltage with either NPN or PNP output
• Provides DIP-switch adjustment of light/dark operate, solid/flashing job light indicator, A/B frequency and gate polarity for activating job light
• Offered in four lengths-100 mm, 225 mm, 300 mm, 375 mm-to fit common bin sizes
• Accommodates 2 meter separation distance
• Incorporates highly visible indicator LEDs

Click to view the PVA100P6EQ-W-6IN specification sheet in *.pdf format
