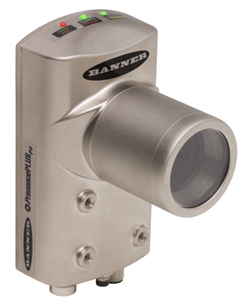

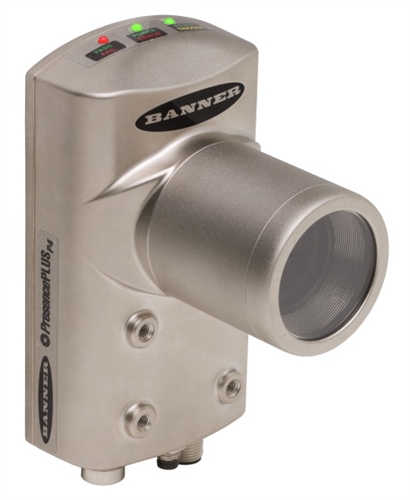

P4O1.3RS - Banner Engineering PresencePLUS P4 Sealed Omni Right Angle; Pixels:1280 x 1024- Stored Inspections 999; I/O: 4 configurable - NPN/PNP Function Timing; Requires 1 MQDC2S-xxxx cordset

P4O1.3RS - Banner
P4O1.3RS

Alternative Views:
Price: $8,075.00
Manufacturer SKU: P4O1.3RS
Manufacturer ID: 10424


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: P4O1-3RS
Qty:

Description

P4O1.3RS - Banner Engineering PresencePLUS P4 Sealed Omni Right Angle; Pixels:1280 x 1024- Stored Inspections 999; I/O: 4 configurable - NPN/PNP Function Timing; Requires 1 MQDC2S-xxxx cordset

Overview

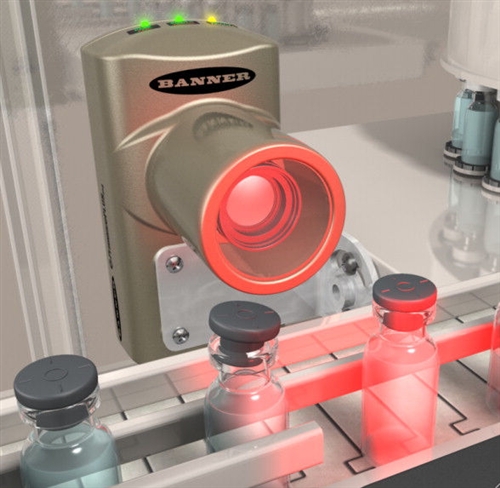

Sealed, IP68-rated vision sensor for high-speed inspections in washdown environments.

  • Rugged, nickel-plated aluminum, waterproof housing; rated IEC IP68
  • Features a 640 x 480 CCD imager
  • Performs inspections up to 2,000 parts per minute (PPM)
  • Choose either lens cover or integrated IP68 Ring Light (sold separately)
  • Direct connectivity to EtherNet/IP and Modbus/TCP industrial standard network protocols with Communications Tools
  • Standard PresencePLUS P4 I/O-10/100 Ethernet, RS232 Serial, 4 discrete NPN or PNP wires with configurable timing
  • Includes standard vision tools from the P4 GEO, EDGE and AREA sensors: Locate, Geometric Find, Edge, Object, Blob, Average Grayscale, Geometric Count, Measure
