MQDC20-515 - Banner Engineering Euro-style Quick Disconnect Cable; 5 Pin Straight Connector; 5 m (15 ft) in Length; Chrome plated brass coupling nut

MQDC20-515 - Banner
MQDC20-515

Price: $58.00
Manufacturer SKU: MQDC20-515
Manufacturer ID: 79870


Free Shipping
Availability: Usually Ships in 3 to 5 days
Part Number: MQDC20-515
Qty:

Description

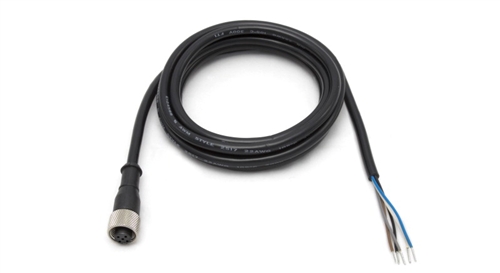

MQDC20-515 - Banner Engineering Euro-style Quick Disconnect Cable; 5 Pin Straight Connector; 5 m (15 ft) in Length; Chrome plated brass coupling nut

Specifications

Primary Connector Type EURO
Coupling Method M12 Single Key
Number of Pins 5
Gender Female
Orientation Straight
Length (m) 1.83
Connector Body Material/Color PUR Black
Number of Connectors 1
Number of Wires 5
Secondary Connector Type (or Branch 1 connector) Flying Leads
Gauge (AWG) 20
Cable Jacket Material PVC
Cable Jacket Color Black
Outside Cable Diameter (mm) 6
Shield No Shield
AC Voltage/current 250V/4A
DC Voltage/current 250V/4A
Minimum Temp. (Celsius) -40
Maximum Temp. (Celsius) 105
IEC IP67 Y
IEC IP68 N
IEC IP69K N
