MAHCIP-1 - Banner Engineering High-Res MINI-ARRAY Controller; Input: 16-30V dc; Output: Discrete:2 PNP; Analog:2 4-20 mA sinking; Serial Data Output: RS-232 and RS-485

MAHCIP-1 - Banner
MAHCIP-1

Price: $717.00
Manufacturer SKU: MAHCIP1
Manufacturer ID: 61333


Free Shipping
Availability: Normally Stocked
Part Number: MAHCIP-1
Qty:

Description

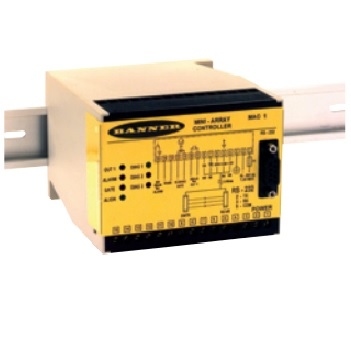

Banner Engineering A-Gage High-Resolution Mini-Array MAHCIP-1

The A-Gage High-Resolution Mini-Array measuring light screen is ideal for applications such as on-the-fly product sizing and profiling, edge-guiding and center-guiding, loop tensioning control, hole detection, parts counting and similar uses.

A typical A-Gage High-Resolution Mini-Array System has five components: a high-resolution emitter/receiver pair, each with quick-disconnect (QD) connectors; one of four compact control modules; and quick-disconnect cables to connect them. Software is included to interface any PC-compatible computer (running Windows XP, Vista, or 7) with the control module for System configuration. A host computer or PLC may be used to control and/or receive input for the System.

Features
  • Excels at high-speed, precise process monitoring and inspection applications
  • A comprehensive combination of scanning modes and outputs:
    • 10 measurement ("Scan Analysis") modes
    • 3 scanning methods
    • Beam blanking
    • Selectable continuous, gated or host-controlled scan initiation
    • Programmable hysteresis for high and low limits
    • Serial communication options
  • Storable scanning programs eliminate reprogramming for repeated applications
  • Non-volatile memory stores alignment settings
  • All models with both Analog and Discrete outputs
  • Analog output Null setting
  • Low cost, compared with similar systems
  • Precision sensors have 380 mm to 1.8 m (15" to 6') working range
  • Wide field of view, easily aligned
  • Alignment routine equalizes gain of each beam for reliable 2.5 mm (0.10") object detection throughout the array
  • Host computer or PLC may be used to initiate scans and/or process scan data
  • Unique addresses for up to 15 control modules on one EIA-485 Party line


pdfDownload the MAHCIP-1 Quick Start Guide in *.pdf format.
