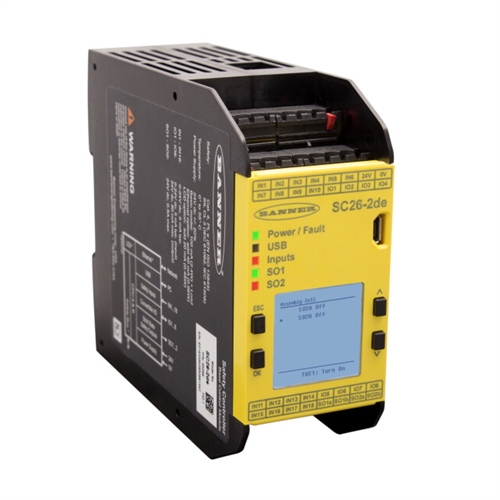

Network Interface
|
|
Ethernet 10/100 Base-T/TX, RJ45 modular connector
Selectable auto negotiate or manual rate and duplex
Auto MDI/MDIX (auto cross) Protocols: EtherNet/IP (with PCCC), Modbus/TCP
Data: 64 configurable virtual status outputs; fault diagnostic codes and messages; access to fault log
|
|
|
|
|
|
Power
|
|
24 V dc ± 20% (incl. ripple), 100 mA no load
Ethernet models:add 40 mA
Display models:add 20 mA
|
|
|
|
|
|
Convertible I/O
|
|
Sourcing current: 80 mA maximum at 55 °C (131 °F) operating ambient temperature (overcurrent protected)
|
|
|
|
|
|
Safety Inputs
|
|
Input On threshold: > 15 V dc (guaranteed on), 30 V dc max.
Input Off threshold: < 5 V dc and < 2 mA, –3 V dc min.
Input On current: 5 mA typical at 24 V dc, 50 mA peak contact cleaning current at 24 V dc
Input lead resistance: 300 Ω max. (150 Ω per lead)
Input requirements for a 4-wire Safety Mat:Max. capacity between plates: 0.22 μ F
Max. capacity between bottom plate and ground: 0.22 μ F
Max. resistance between the 2 input terminals of one plate: 20 Ω
|
|
|
|
|
|
Solid State Safety Outputs
|
|
0.5 A max. at 24 V dc (1.0 V dc max. drop)
Output OFF threshold: 1.7 V dc typical (2.0 V dc max.)
Output leakage current:: 50 μ A max. with open 0V
Load: 0.1 μ F max., 1 H max., 10 Ω max. per lead
|
|
|
|
|
|
Operating Temperatures
|
|
0 °C to +55 °C (+32 °F to +131 °F)
|
|
|
|
|
|
Environmental Rating
|
|
NEMA 1 (IEC IP20), for use inside NEMA 3 (IEC IP54) or better enclosure
|
|
|
|
|
|
Removable Screw Terminals
|
|
Wire size: 24 to 12 AWG (0.2 to 3.31 mm²)
Wire strip length: 7 to 8 mm (0.275 in to 0.315 in)
Tightening torque: 0.565 Nm (5.0 in-lb)
|
|
|
|
|
|
Removable Clamp Terminals
|
|
Important: Clamp terminals are designed for 1 wire
only. If more than 1 wire is connected to a terminal, a wire could
loosen or become completely disconnected from the terminal, causing a
short.
Wire size: 24 to 16 AWG (0.20 to 1.31 mm²)
Wire strip length: 8.00 mm (0.315 in)
|
|
|
|
|
|
Mechanical Stress
|
|
Shock: 15 g for 11 ms, half sine, 18 shocks total (per IEC 61131-2)
Vibration: 3.5 mm occasional / 1.75 mm continuous at 5
Hz to 9 Hz, 1.0 g occasional and 0.5 g continuous at 9 Hz to 150 Hz: all
at 10 sweep cycles per axis (per IEC 61131-2)
|
|
|
|
|
|
Safety
|
|
Category 4, PL e (EN ISO 13849)
SIL CL 3 (IEC 61062, IEC 61508)
|
|
|
|
|
|
Product Performance Standards
|
|
See Standards and Regulations section in the Instruction Manual for a
list of industry applicable U.S. and international standards.
|
|
|
|
|
|
EMC
|
|
Meets or exceeds all EMC requirements in IEC 61131-2, IEC 62061 Annex E,
Table E.1 (increased immunity levels), IEC 61326-1:2006, and
IEC61326-3-1:2008
|
