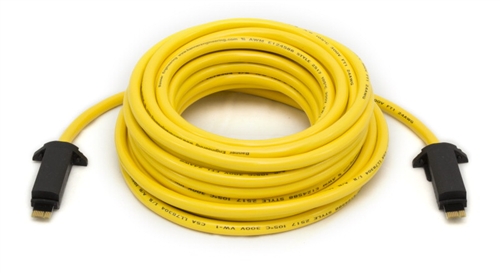

DELP-111E - Banner Engineering CDS LP/LP 11 M/M ST/ST .30 ZSM11X24 2 NP B .305 6.00 N ZSM11

DELP-111E - Banner
DELP-111E

Price: $35.00
Manufacturer SKU: DELP-111E
Manufacturer ID: 80803


Free Shipping
Availability: Normally Stocked
Part Number: DELP-111E
Qty:

Description

DELP-111E - Banner Engineering CDS LP/LP 11 M/M ST/ST .30 ZSM11X24 2 NP B .305 6.00 N ZSM11

Specifications

Primary Connector Type LP-Custom
Coupling Method LP-Custom
Number of Pins 11
Gender Male
Orientation Straight
Length (m) .05 - 30.5 m
Connector Body Material/Color PUR Black
Number of Connectors 2
Number of Wires 11
Secondary Connector Type (or Branch 1 connector) LP-Custom
Secondary Coupling Method LP-Custom
Secondary Number of Pins 11
Secondary Gender Male
Secondary Orientation Straight
Gauge (AWG) 24
Cable Jacket Material PVC
Cable Jacket Color Yellow
Outside Cable Diameter (mm) 6
Shield No Shield
AC Voltage/current 60V/2A
DC Voltage/current 75V/2A
IEC IP67 Y
IEC IP68 N
IEC IP69K N
