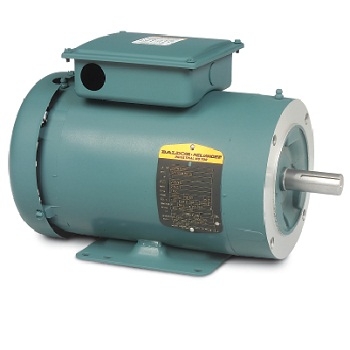

CSPM3546T - Baldor 1HP, 1800RPM, 3PH, 50/60HZ, 145TC, 230/460V
Baldor - CSPM3546T
CSPM3546T

Price: $3,519.94
Returnable: NOT RETURNABLE
Manufacturer SKU: CSPM3546T


Free Shipping
Availability: Usually Ships within 24 hours
Part Number: CSPM3546T
Qty:

Description Documents & Downloads

Applications: Synchronous permanent magnet motors are designed for those applications requiring inherent, precise, open-loop speed regulation of individual or multiple interconnected operations.

Features: Motor design incorporates permanent magnets imbedded in the rotor to form salient poles that synchronize the load to the frequency applied with zero slip. Steel band frames, top mounted steel conduit box, 1.0 service factor, Class F insulation, 40C ambient, continuous duty. Precision balanced with Max Safe Speed = 6,000 RPM. Inverter Ready design suitable for 10:1 Constant Torque speed range.
CSPM3546T
Additional Product Information
pdfDownload the CSPM3546T Data Sheet in *.pdf format
