BI-1U-EG05-AP6X-V1331 - Turck S4602117 5mm Threaded Barrel, PNP Output
- Threaded barrel, M5 x 0.5
- Stainless steel, 1.4427 SO
- Factor 1 for all metals
- Resistant to magnetic fields
- Large switching distance
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- M8 x 1 male connector
The Uprox3 Series Family
The
Uprox3 series of sensors offers the largest switching distances of all
Factor 1 sensors on the market thanks to an electronic platform that
uses the latest chip set and manufacturing technologies.
These
technologies are a world first, enabling the creation of the uprox3
Factor 1 sensors in compact, 4mm smooth barrel and M5 designs with a 1mm
switching distance, even for flush mounting. TURCK has also managed to
shrink the previously most compact M8, M12 and M18 designs.
Uprox3
sensors are the third generation of TURCK’s uprox Factor 1 sensors.
Although the existing uprox+ sensors offered large switching distances
for all metals, these distances are increased by as much as 50 percent
in the new sensors. It previously was unattainable to sense 3mm in the
M8 design, 6mm in M12 and 10mm in M18. However, thanks to the consistent
development of its uprox technology, TURCK has been able to achieve
these larger switching distances without any compromises in performance.
The
uprox3 sensors still offer outstanding application reliability for
demanding sensing tasks, but also allow for the possibility of
completely new installations.
Because of their inherent immunity
to magnetic fields, the uprox3 series sensors are suitable for use in
many demanding industrial sectors, such as welding for the automotive
and metal forming markets. The new uprox3 series will be available with
robust PTFE coated sensors in M8, M12 and M18 designs. weldguard® will
also be available. Like their predecessors, all uprox3 sensors offer a
high EMC stability and flexible mounting including full flush mounting,
as well as precise switch points.
 Download the Uprox 3 sales brochure in *.pdf format
Download the BI-1U-EG05-AP6X-V1331 datasheet in *.pdf format
| Type Code |
|
BI1U-EG05-AP6X-V1331 |
| |
Indent-No. |
4602117 |
| Rated Switching Distance Sn |
|
1mm |
| |
Mounting Conditions |
Flush |
| |
Assured Switching Distance |
≤ (0,81 x Sn) mm |
| |
Repeatability |
≤ 2 % of full scale |
| |
Temperature Drift |
≤ ± 10 % |
| |
Hysteresis |
≤ ± 20 %, ≤ 0 °C
3…15 % |
| |
Ambient Temperature |
-25…+70 °C |
| Operating Voltage |
|
10…30VDC |
| |
Residual Ripple |
≤ 10 % Uss |
| |
DC Rated Operational Current |
≤ 100 mA |
| |
No-Load Current I0 |
≤ 20 mA |
| |
Residual Current |
≤ 0.1 mA |
| |
Rated Insulation Voltage |
≤ 0.5 kV |
| |
Short-Circuit Protection |
yes/ cyclic |
| |
Voltage Drop at Ie |
≤ 1.8 V |
| |
Wire Breakage / Reverse Polarity Protection |
yes/ complete |
| |
Output Function |
3-wire, NO contact, NPN |
| |
Switching Frequency |
2 kHz |

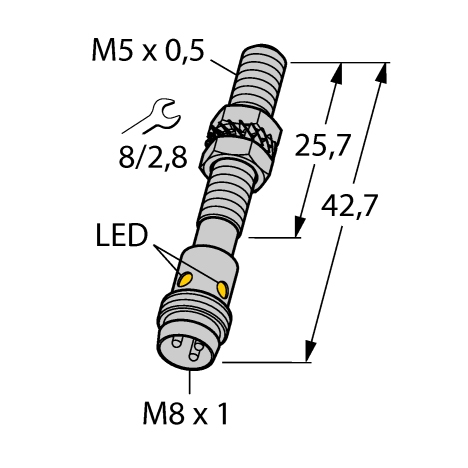

| Construction |
|
threaded barrel, M5 x 0.5 |
| |
Dimensions |
42.7mm |
| |
Housing Material |
stainless steel, 1.4427 SO |
| |
Material Active Area |
plastic, PA |
| |
Max. Tightening Torque Housing Nut |
5 Nm |
| |
Connection |
male, M8 x 1 |
| |
Cable Cross Section |
3 x 0.14 mm2 |
| |
Vibration Resistance |
55 Hz (1 mm) |
| |
Shock Resistance |
30 g (11 ms) |
| |
IP Rating |
IP67 |
| |
MTTF |
874 years acc. to SN 29500 (Ed. 99) 40 °C |
| Switching State |
|
LED Yellow |
| Distance D |
|
2 x B |
| Distance W |
|
3 x Sn |
| Distance T |
|
3 x B |
| Distance S |
|
1.5 x B |
| Distance G |
|
6 x Sn |
| Diameter of the active area B |
|
Ø 5 mm |
|
|
|
 |
|
 |
|
