AZM190-11/10RK-24VDC - Schmersal AZM190 Series Solenoid latching interlock (131030004)

AZM190-11-10RK-24VDC  - Schmersal AZM190 Series Solenoid latching interlock
AZM190-11-10RK-24VDC

Price: $486.00
Manufacturer SKU: AZM190-11-10RK-24VDC
Manufacturer ID: 131030004


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: AZM190-11-10RK-24VDC
Qty:

Description

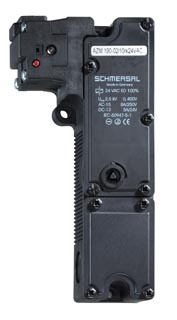

AZM190-11-10RK-24VDC - Schmersal AZM190 Series Solenoid latching interlock

*Note: Only includes solenoid interlock. Actuator magnet sold separately.*

The AZM190 Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.

Specifications:

• Magnet: 1NC + 1NO contact
• Actuator: 1 NO contact
• Power to unlock
• Thermoplastic enclosure
• Long life
• Interlock with protection against incorrect locking.
• 89 mm x 178 mm x 41 mm
• Actuating head can be repositioned by 4 x 90°
• 2 cable entries M 20 x 1.5
• Wiring compartment
• Slim design, particularly suitable for fitting on hinged doors, aluminum profiles and fencing
• Sealing mechanism to prevent the ingress of dirt
• Cut clamp termination
• Manual release
