AZM190-02/10RK-110VAC - Schmersal AZM190 Series Solenoid latching interlock (131029962)

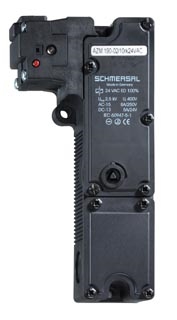

AZM190-02/10RK-110VAC - Schmersal AZM190 Series Solenoid latching interlock
AZM190-02-10RK-110VAC

Price: $517.00
Manufacturer SKU: AZM190-02-10RK-110VAC
Manufacturer ID: 131029962


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: AZM190-02-10RK-110VAC
Qty:

Description

AZM190-02-10RK-110VAC - Schmersal AZM190 Series Solenoid latching interlock

*Note: Only includes solenoid interlock. Actuator magnet sold separately.*

The AZM190 Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.

Specifications:

• Magnet: 2NC contacts
• Actuator: 1 NO contact
• Power to unlock
• Thermoplastic enclosure
• Long life
• Interlock with protection against incorrect locking.
• 89 mm x 178 mm x 41 mm
• Actuating head can be repositioned by 4 x 90°
• 2 cable entries M 20 x 1.5
• Wiring compartment
• Slim design, particularly suitable for fitting on hinged doors, aluminum profiles and fencing
• Sealing mechanism to prevent the ingress of dirt
• Cut clamp termination
• Manual release
