AZM170-11ZRK-230-VAC - Schmersal AZM170 Solenoid latching interlock ( 101136325 )

AZM170-11ZRK 230 VAC - Schmersal
AZM170-11ZRK 230 VAC

Price: $516.00
Manufacturer SKU: AZM170-11ZRK 230 VAC
Manufacturer ID: 101136325


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: AZM170-11ZRK-230-VAC
Qty:

Description

IDC method of termination; 1 Normally open contact (NO) / 1 Opener (NC); Latching force 30 N; Power to unlock; cable gland; Manual release; Us 230 VAC

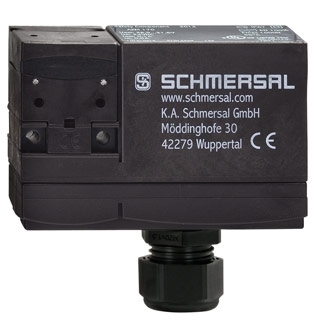

The AZM170 consists of an electromechanical safety interlock switch joined to a solenoid-latching mechanism. Both the safety switch and solenoid mechanism feature "positive-break" contacts. In addition the actuator key features a built-in latch (unlocked key holding force of 7 pounds), and an auxiliary manual unlocking device.

  • Thermoplastic enclosure
  • Double-insulated
  • Compact design
  • 90 mm x 84 mm x 30 mm
  • 1 Cable entry M 20 x 1.5
  • Interlock with protection against incorrect locking.
  • Long life
  • High holding force
  • IDC method of termination
  • Manual release
pdfClick to View the Schmersal AZM170-11ZRK-230-VAC Data sheet in *.pdf format

pdfClick to View the Schmersal AZM170 Catalog in *.pdf format
