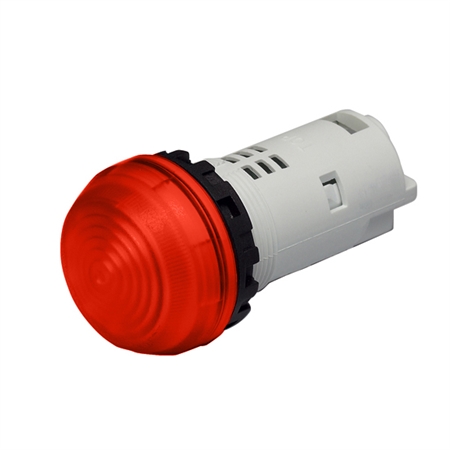

AP22M-2Q4R - IDEC Pilot Light 22mm 24V Red

AP22M-2Q4R - IDEC
AP22M-2Q4R

Price: $29.25
Manufacturer SKU: AP22M-2Q4R


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: AP22M-2Q4R
Qty:

Description Technical Specs

AP22M-2Q4R - IDEC Pilot Light 22mm 24V Red

The AP22M Series Family
Now available in 12V DC, 24V AC/DC or 120V AC, the AP22M series of pilot lights use high-intensity LEDs to provide ultra-bright visibility even in direct sunlight! These lights are perfect for use in applications located in dirty environments, or with high ambient light levels, such as waste water treatment plants, car washes, and solar or outdoor control panels. AP22M is available in six vibrant color lenses or with a clear lens to provide sharper contrast between lit and unlit. When viewed from the side, these lights provide illumination up to 100 times brighter than a standard pilot light. You need to see it to believe it!

Key Features
  • Ultra-bright, sunlight viewable LEDs
  • Visible from all directions
  • Dome lenses in six colors and clear
  • Unibody design
  • 12V AC, 24V AC/DC or 120V AC ?22.3mm mounting hole compliant with IEC 60947-5-1
  • IP20-rating (finger protection)
  • UL Type 4X, C-UL-us listed, EN standard compliant

pdfDownload the Switching & Controls Family Catalog in *.pdf format
pdfDownload the Quick Selection Guide in *.pdf format
pdfDownload the AP22M Series datasheet in *.pdf format
