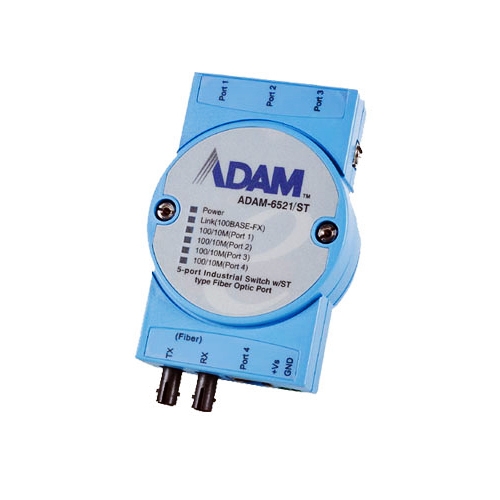

ADAM-6521-ST-AE - Advantech ETHERNET DEVICE, 5-port Switch w/1 M-Mode ST Type Fiber Port
ADAM-6521/ST is an industrial-grade Ethernet switch with a fiber optic port that makes it possible to expand industrial networks fast and cost-effectively. ADAM-6521/ST has 1 fiber port and 4-RJ-45 ports. With fiber optics, you can prevent noise interfering with your system and implement transmission distances up to 15 km. ADAM-6521/ST supports a wide voltage range of +10 ~ 30 VDC over the terminal block, and 3,000 VDC surge protection (EFT) to protect it from being damaged by over-voltage. A wide operating temperature range from -10 to 65° C (14 ~ 149° F), makes it functional in harsh operating environments. Six inclusive LED indicators make troubleshooting easier. Each port has a pair of LEDs that indicate link status and transmission speed. This function conveniently informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnostics.
Industrial Ethernet Switches with 4 x 10/100Base-TX Ports & 1 x 100Base-FX Fiber Optic Port
- Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
- Provides 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
- Supports full/half duplex flow control
- Supports Integrated Loop-up engine
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Supports +10 ~ 30 VDC voltage power input
- Provides surge (EFT) protection 3,000 VDC for power line
- Supports 4,000 VDC Ethernet ESD protection
- Provides flexible mounting: DIN-rail, Wall, Stack
- Supports operating temperatures from -10 ~ 65° C
 Download the ADAM-6521-ST-AE brochure in *.pdf format
|
General
|
Certifications
|
CE, FCC, UL/cUL 60950-1
|
|
Interface
|
Ports Number
|
1
|
|
I/O
|
Transmission Distance
|
Ethernet up to 100 m, Fiber up to 2 km
|
|
Transmission Speed
|
UP to 100 Mbps
|
|
Power Supply
|
Power Input
|
1 x Unregulated 10 ~ 30 VDC
|
|
Power Connector
|
2-pin removable screw terminal
|
|
Operating System
|
Temperature (Operating)
|
-10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F)
|
|
General
|
Ethernet Connectors
|
1 x ST type fiber connector
|
|
Mounting
|
DIN 35 rail, Wall, Stack
|
|
|
|
 |
|
 |
|
