ADAM-6521-BE - Advantech CIRCUIT BOARD, 5-port Switch w/1 Multi-Mode Fiber-Optic Port

ADAM-6521-BE - Advantech
ADAM-6521-BE

Price: $213.15
Manufacturer SKU: ADAM-6521-BE


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-6521-BE
Qty:

Description Technical Specs

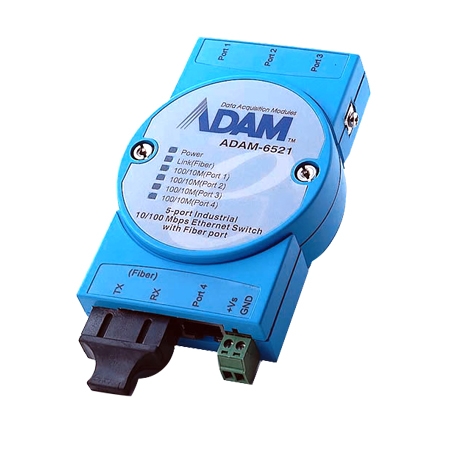

ADAM-6521-BE - Advantech CIRCUIT BOARD, 5-port Switch w/1 Multi-Mode Fiber-Optic Port
The ADAM-6521 is an industrial-grade Ethernet hub for infrastructure networking solution in industrial Automation environment. It allows users to cost-effectively expand their industrial network with ease. The ADAM-6521 consists of one fiber optic and four RJ-45 ports. With fiber optic, you can prevent noise interference from the system and transmission distance up to 2 km. The design is focused on industrial-grade reliability and stability. Thus, the ADAM-6521 is especially suited for industrial environments with Ethernet networking needs, e.g. semi-conductor factories, inventory control environments, assembly lines, production and more.

Industrial Ethernet Switches with 4 x 10/100Base-TX Ports & 1 x 100Base-FX Fiber Optic Port
  • Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
  • Provides 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
  • Supports full/half duplex flow control
  • Supports Integrated Loop-up engine
  • Supports MDI/MDI-X auto crossover
  • Provides broadcast storm protection
  • Supports +10 ~ 30 VDC voltage power input
  • Provides surge (EFT) protection 3,000 VDC for power line
  • Supports 4,000 VDC Ethernet ESD protection
  • Provides flexible mounting: DIN-rail, Wall, Stack
  • Supports operating temperatures from -10 ~ 65° C
pdfDownload the ADAM-6521-BE brochure in *.pdf format
