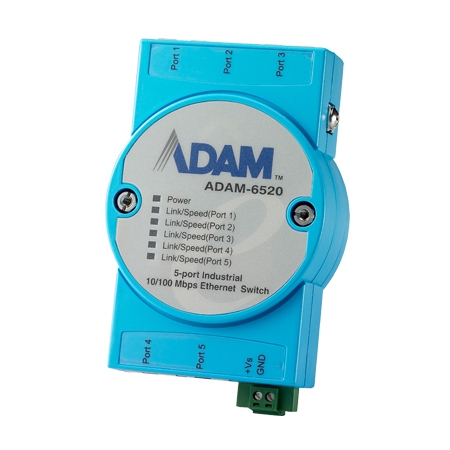

ADAM-6520-BE - Advantech ETHERNET DEVICE, 5-port 10/100 Mbps Industrial Switch
ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates(Auto-negotiation). Just like any other product in the ADAM family, ADAM-6520 can be mounted in three different ways: DIN rail, Wall and Stack. Solid industrial-grade design assures reliable operation in common application areas like: semi-conductor factories, inventory control environments, assembly lines, manufacturing and many more. All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block, and 3,000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments. The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnosis.
5-port Industrial 10/100 Mbps Ethernet Switch
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Embedded with a switch controller, supports auto-negotiation
- Supports +10 ~ 30 VDC voltage power input
- Provides surge (EFT) protection 3000VDC for power line (ADAM-6520L not equipped)
- Supports 4,000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
- Provides flexible mounting: DIN-rail, Wall, Stack
- Supports wide operating temperature range : -40 ~ 85° C (ADAM-6520)
 Download the ADAM-6520-BE brochure in *.pdf format
|
Interface
|
Ports Number
|
5
|
|
I/O
|
Transmission Distance
|
Ethernet up to 100 m
|
|
Transmission Speed
|
UP to 100 Mbps
|
|
Power Supply
|
Power Input
|
1 x Unregulated 10 ~ 30 VDC
|
|
Power Connector
|
2-pin removable screw terminal
|
|
Operating System
|
Temperature (Operating)
|
-10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F)
|
|
General
|
Ethernet Connectors
|
5 x RJ-45
|
|
Mounting
|
DIN 35 rail, Wall, Stack
|
|
Certifications
|
CE, FCC, UL/cUL 60950-1
|
|
|
|
 |
|
 |
|
