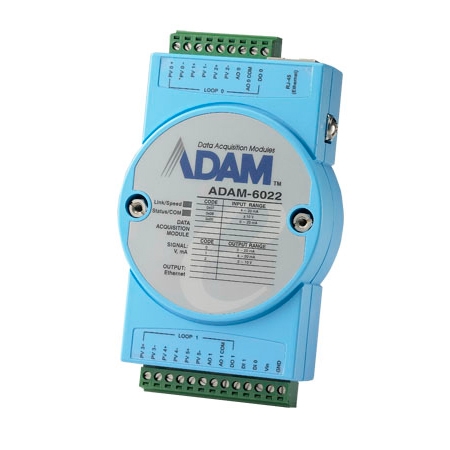

ADAM-6022-A1E - Advantech ADAM-6022-A1E Dual Loop PID Controller Module

ADAM-6022-A1E - Advantech
ADAM-6022-A1E

Price: $539.70
Manufacturer SKU: ADAM-6022-A1E


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-6022-A1E
Qty:

Description

ADAM-6022-A1E - Advantech Dual Loop PID Controller Module
Advantech’s ADAM-6022 is an Ethernet-enabled dual-loop PID controller for general purposed PID control applications. A user-friendly utility software is included for users to set PID parameters (Pv, Mv, & Sv). Through the integrated web page, users can monitor and change the control set point through the Internet via web browser. The ADAM-6022 also supports MODBUS/TCP protocol. HMI software can easily access this module to monitor the I/O data and change the control parameters.

Ethernet-based Dual-loop PID Controller
  • 2 loop PID control algorithms built in one package
  • 3 analog input/1 analog output/1 digital input/1digital alarm output for 1 PID loop
  • Support multiple analog I/O ranges: 0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA
  • Support heating/cooling (direct/reverse) action mode
  • Support loop open/close (PID disable/enable) and analog output manual control modes
  • Built-in watchdog timer
